1000W Bass Loudspeaker Enclosure: Installed Sound B300i
Installed Sound Range: B300i – Logic Systems Pro Audio
Installed Sound Range
The Logic Systems Pro Audio B300i is A compact installation specific, high power bass enclosure featuring 2 x 15” cone drivers. The B300i is installation specific and includes insert points that permit the cabinet to be mounted in a variety of positions including against the ceiling; a useful feature when space is often at a premium. Corner porting also ensures uniformity of performance when mounted in either the landscape or portrait modes.
The Logic Systems DP2140 system controller contains presets for the combination of the B150 with other Logic System products.
Additional Note:
1.) Sensitivity measured at 1 meter with 2.83V, using band limited pink noise.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 40Hz – 150kHz |
| Components | Bass: 2 x 15″ cone driver HF: N/A |
| Power Handling | 1000w |
| Sensitivity (1) | 105dB |
| Directivity | Omni-directional |
| Impedance | 4 Ohm |
| Construction | 18mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | 2 x Neutrik NL4 MPR 1+/-: Input 2+/-: Linked |

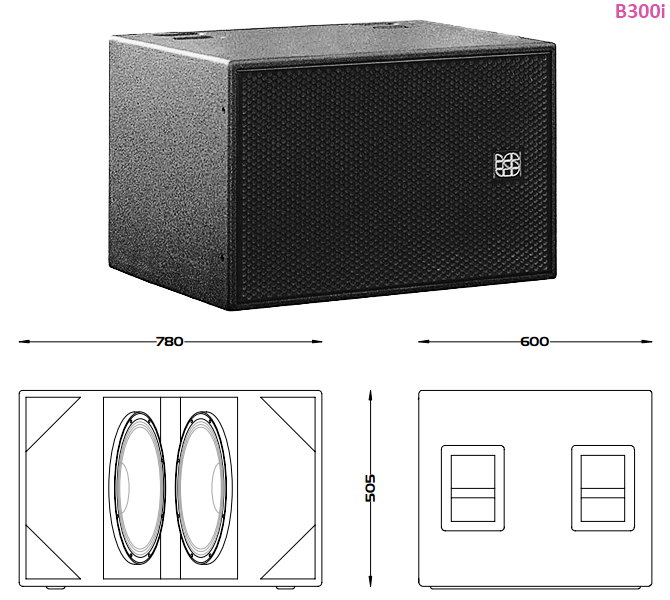

| Dimensions | 505mm (W) x 780mm (H) x 600mm (D) |
| Packaged Dimensions (2) | 635mm (W) x 930mm (H) x 730mm(D) |
| Weight | 63 KG |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | B300i |
| Handles | 4 OFF |
| Tophat | No |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | No |
| Inserts / Fly Points: |
No |
