400W Loudspeaker – 15″ Bass: Installed Sound IS15
Installed Sound Range: IS15 – Logic Systems Pro Audio
Installed Sound Range
The Logic Systems Pro Audio IS15 cabinet combines a 15 inch Mid/Bass cone with 1.4” compression driver on a 90 x40 horn flare. The cabinet is part of the IS series which is aimed specifically at the Bar and Club installation market. The IS Series are available with a range of bracket options to aid installation and can also be ordered in special are black and white.
The IS Series aims to bring both an audio and build quality that is not common at this price point. To this end all IS Series cabinets are constructed from birch ply and are rebated, glued and screwed. Additionally all audio components are sourced from within the EU.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 55Hz – 20kHz |
| Components | Bass/mid: 12″ cone driver HF: 1.4” compression driver |
| Power Handling | 400ww |
| Sensitivity (1) | 98dB |
| Directivity | 90 x 40 above 1.5kHz |
| Impedance | 8 Ohm nominal |
| Construction | 15mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | 1 x Neutrik NL4 MPR 1+/2+ = Positive Input 1-/2- = Negative Input |

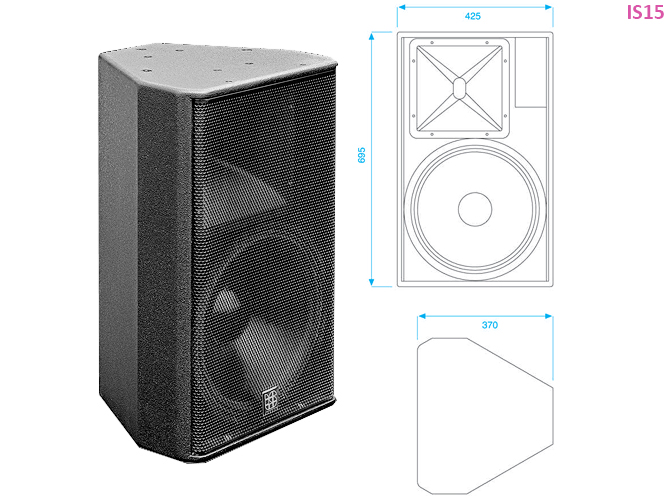

| Dimensions | 425mm (W) x 695mm (H) x 370mm (D) |
| Packaged Dimensions (2) | 535mm (W) x 815mm (H) x 480mm (D) |
| Weight | 26 KG |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | IS15 |
| Handles | No |
| Tophat | No |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | Black/Top/Side |
| Inserts / Fly Points: |
8 OFF M10 Inserts |
