500W Bass Loudspeaker Enclosure: Installed Sound B150

Installed Sound Range: B150 – Logic Systems Pro Audio

Installed Sound Range

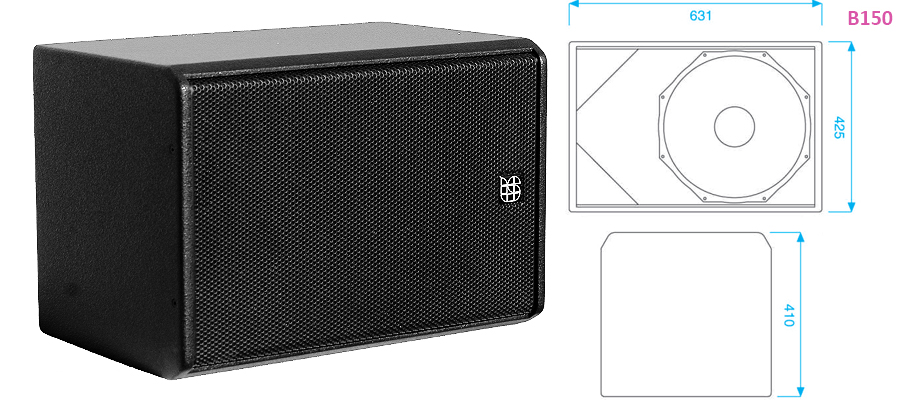

The Logic Systems Pro Audio B150 is a compact, high power 500w bass loudspeaker enclosure which features a direct radiating 15 inch bass driver. The B150 is installation specific and includes insert points that permit the cabinet to be mounted in a variety of positions including against the ceiling; a useful feature when space is often at a premium. Corner porting also ensures uniformity of performance when mounted in either the landscape or portrait modes.

The Logic Systems DP2140 system controller contains presets for the combination of the B150 with other Logic Systems products.

Additional Note:

1.) Sensitivity measured at 1 meter with 2.83V, using band limited pink noise.

Technical Information:

Technical Specification
Frequency Response 45Hz – 150kHz
Components Bass: 1 x 15″ cone driver
HF: N/A
Power Handling 500w
Sensitivity (1) 99dB
Directivity Omni-directional
Impedance 4 Ohm (8 Ohm optional)
Construction 18mm Birch plywood
Finish Water based textured black paint
Connections 2 x Neutrik NL4 MPR
1+/-: Input 2+/-: Linked
Dimensions 425mm (W) x 631mm (H) x 410mm (D)
Packaged Dimensions (2) 580mm (W) x 790mm (H) x 530mm(D)
Weight 25 KG

Cabinet Information:

CABINET SPEC
Cabinet B150
Handles 4 OFF
Tophat No
M20 Plate No
Castors No
Bracket Pt No
Inserts / Fly
Points:
No
