600W Live Stage Monitor – 15″ Bass: Live Sound LM20
The LM Series is a range of state of the art live sound stage monitors. The LM20 600w live cabinet combines a 15” Neodymium mid/bass cone with a coaxially mounted 1.4” neodymium compression driver. The cabinet is switchable between active and passive modes with a discreet switch mounted in the left handle. The coaxial layout has many acoustic advantages and also means that with a centrally mounted HF driver matched pairs are not required.
To aid functionality the cabinet has a handle mounted tophat mount which enables the cabinet to be used for small front of house applications. The monitor also benefits from being low profile to improve those all important sight lines. Another useful feature is link through speakons on the cabinet ends, ensuring neat cabling when used as pairs.
Additional Note:
1.) Sensitivity measured at 1 meter with 2.83V, using band limited pink noise.
2.) Detail in brackets denotes active mode connections.
Ethos Live Sound: LM20 – Logic Systems Pro Audio
Technical Information:
| GENERAL | SPECIFICATION |
|---|---|
| Frequency Response | 45Hz – 20kHz |
| Components: |
|
| Power Handling | 600w (Per Cabinet) |
| Sensitivity (1) | 99dB |
| Directivity | 60 conical above 1kHz |
| Impedance: | 8 Ohm |
| Construction: | 15mm Birch plywood |
| Finish | Water based textured black paint |
| Connections |
|

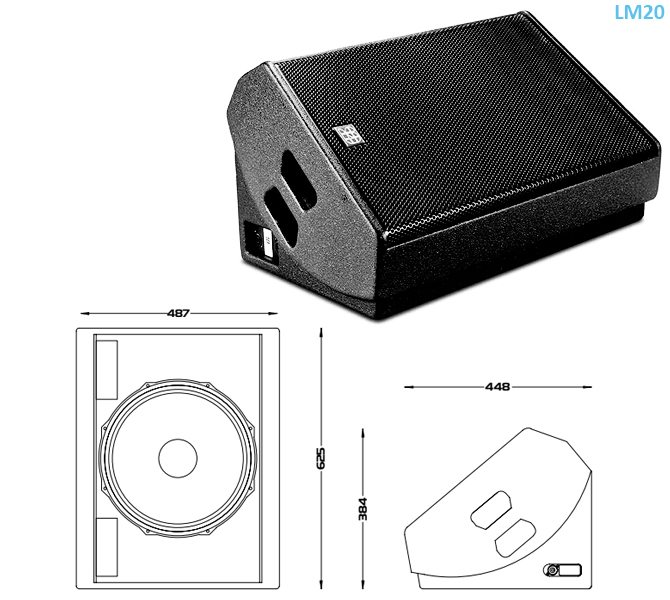

| Dimensions | 487mm (W) x 625mm (H) x 450mm (D) |
| Packaged Dimensions (2) | 580mm (W) x 790mm (H) x 530mm (D) |
| Weight | 27Kg |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | Ethos LM20 |
| Handles | 2 OFF |
| Tophat | Yes |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | No |
| Inserts / Fly Points: |
No |
