MPLS 9.6 Extended Line

MPLS 9.6 Extended Line – Logic Systems Pro Audio

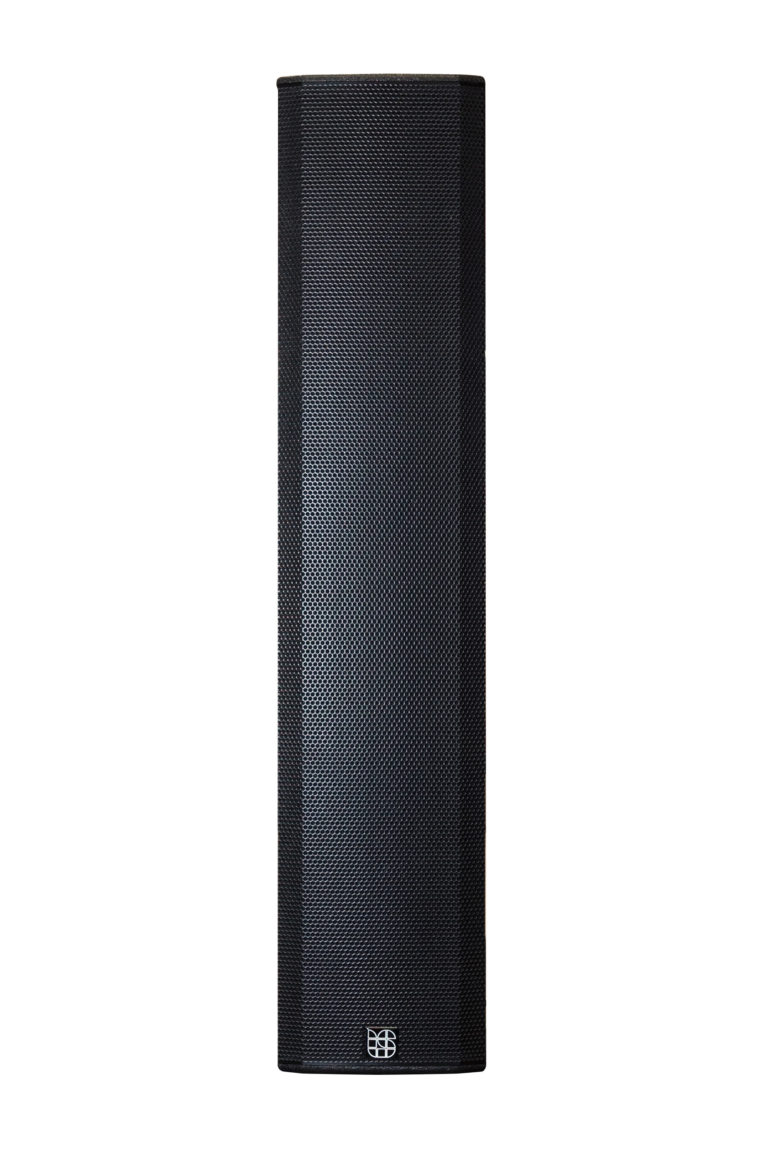

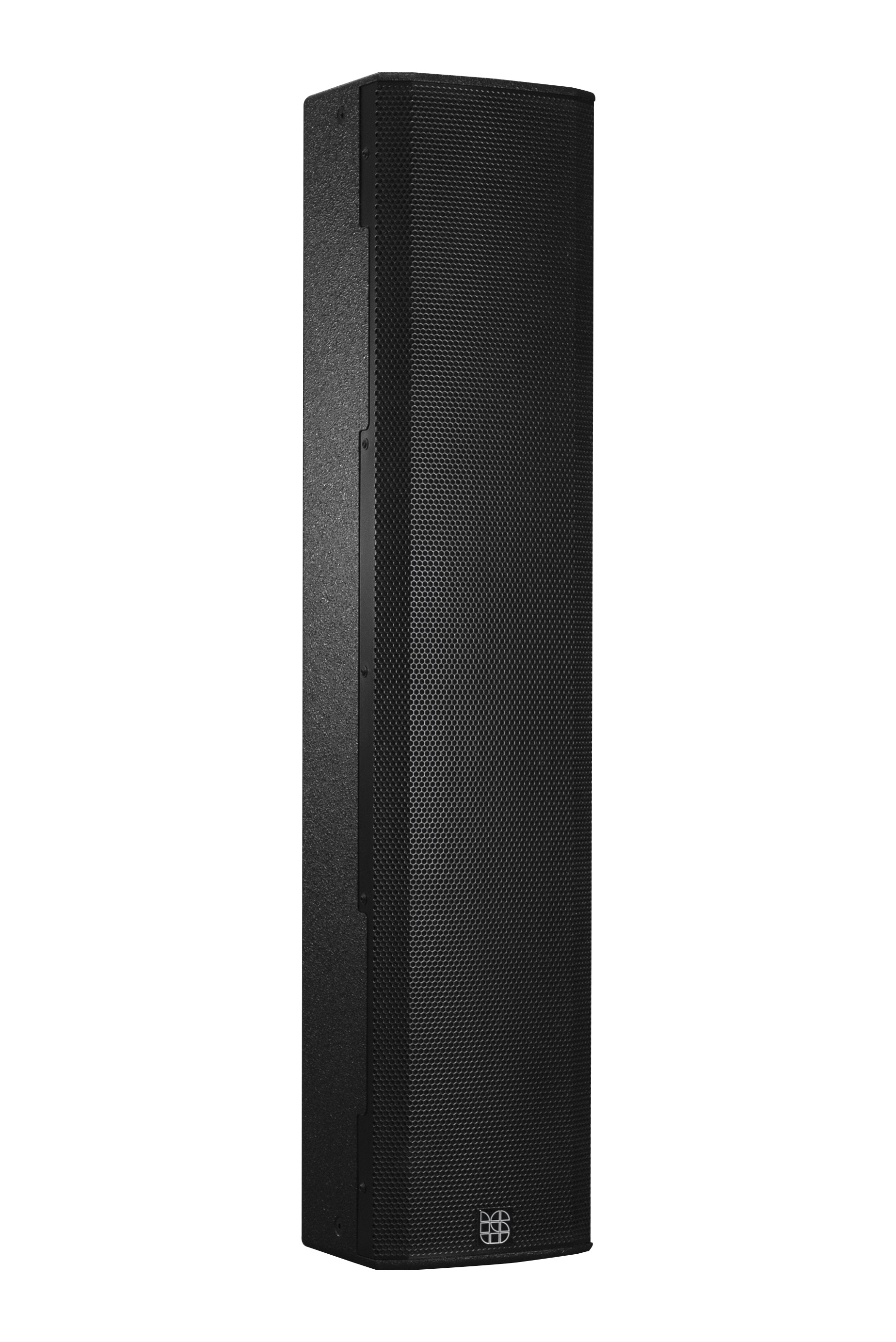

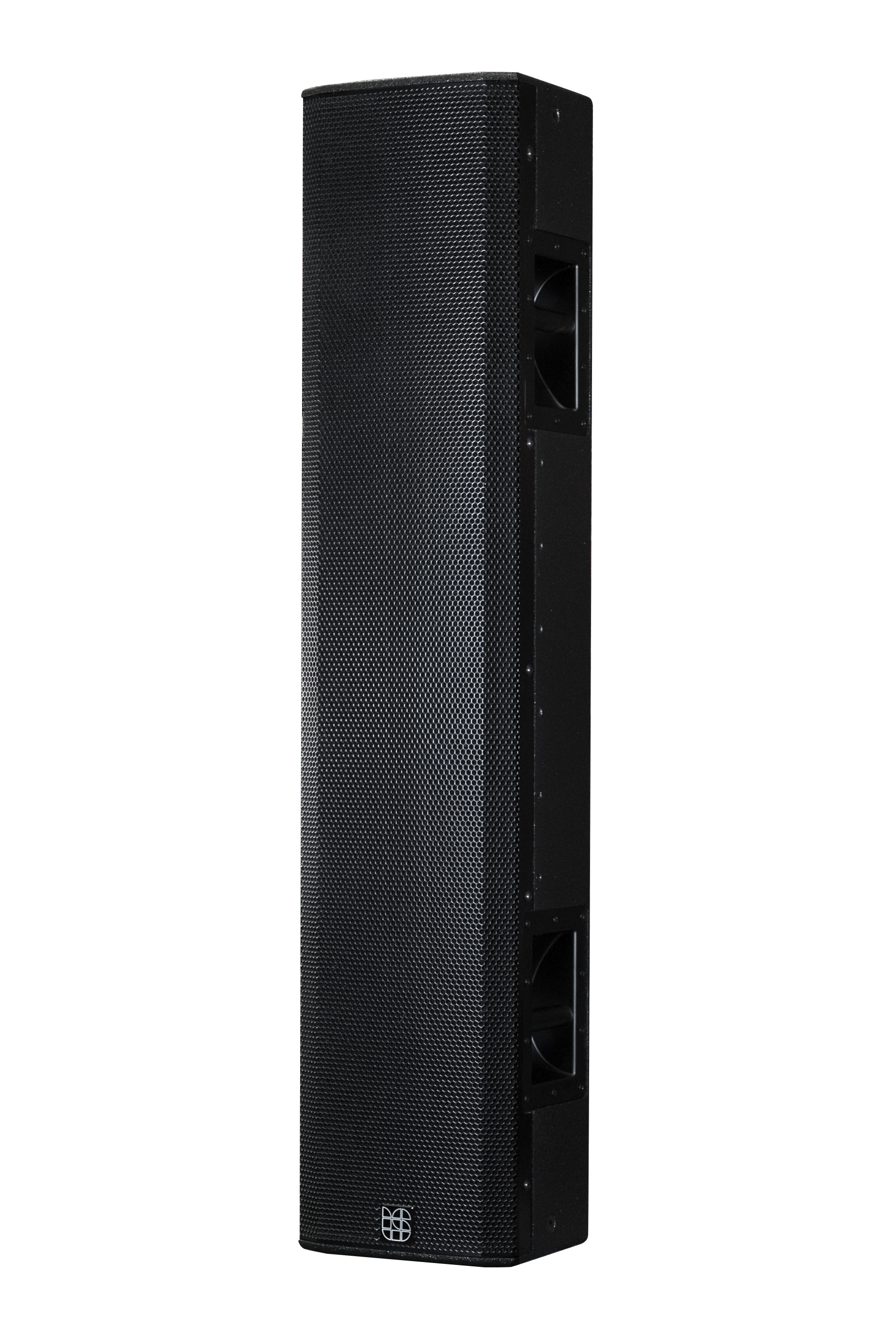

Medium Power Full Range/Mid/High Loudspeaker

The MPLS 9.6 has an operating frequency range 65Hz-18kHz.The loudspeaker is to be used, either stand alone (full range), or with the range of Logic Systems Bass Enclosures using the matching limiter/crossover unit.The format is a vertical line arrangement with integral vertical high frequency line using ferrite components.The loudspeaker uses 9x5” bass/mid drivers and 6x1” compression drivers.

All of the Logic Systems line source loudspeakers are primarily intended for ‘flat floor’ applications where large areas can be covered evenly with minimum excitation of floor and ceiling reflections. The cylindrical audio wave-front produced by these loudspeakers means that the sound level only decreases by 3dB each time the distance from the loudspeaker is doubled giving good coverage distances before the cylindrical properties are lost. F For example the MPLS 3.2 has a range of 15 metres, the MPLS 6.4 is 30 metres and the MPLS 9.6 is 60 metres.

Technical Information:

Technical Specification
Frequency Response 65Hz – 18kHz
Components High Efficiency Ferrite
Power Handling 1000w (AES)
Sensitivity 90dB
Directivity 90 x 15
Impedance 8 Ohm
Construction 15mm Birch plywood
Finish Water based textured black paint
Connections 1+/1-N/c 2+/2-Input
Dimensions 270mm (W) x 1320mm (H) x 220mm (D)
Packaged Dimensions 420mm (W) x 1445mm (H) x 350mm (D)
Weight 36 KG

Cabinet Information:

CABINET SPEC
Cabinet MPLS 9.6
Handles Yes
Tophat Yes
M20 Plate No
Castors No
Bracket Pt No
Inserts / Fly
Points:
Yes
