1000W BASS LOUDSPEAKER ENCLOSURE: Compact Installation Ci118

Compact Installation: Ci118 – Logic Systems Pro Audio

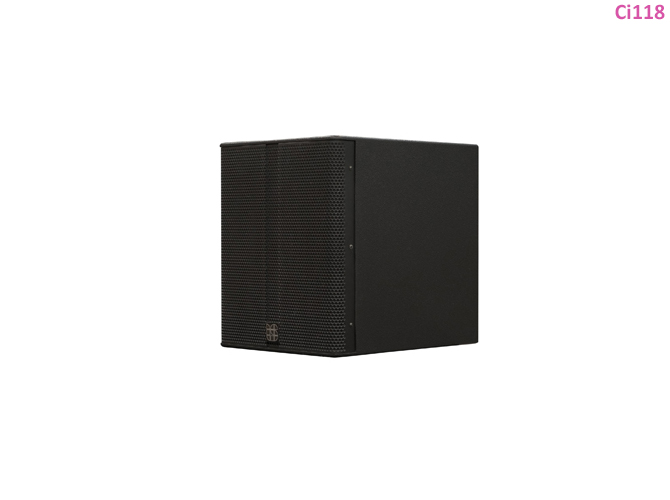

Compact Installation Ci118

The Logic Systems Ci118 is a compact, high power, sub bass enclosure which features a direct radiating 18” sub bass driver. The Ci118 is installation specific. Corner porting also ensures uniformity of performance when mounted in either the landscape or portrait modes.

Additional Note:

1.) Sensitivity measured at 1 metre with 2.83V, using band limited pink noise.

Technical Information:

Technical Specification
Frequency Response 40Hz – 150Hz
Components Bass: 1 x 18” cone driver
HF: N/A
Power Handling 1000w
Sensitivity (1) 98dB
Directivity Omni-directional
Impedance 8 Ohms
Construction 18mm Birch plywood
Finish Water based textured black paint
Connections Phoenix screw terminal connector (supplied)
Dimensions 550mm (W) x 650mm (H) x 655mm (D)
Packaged Dimensions 680mm (W) x 790mm (H) x 810mm(D)
Weight 44Kg

Cabinet Information:

CABINET SPEC
Cabinet Ci118
Handles No
Tophat No
M20 Plate No
Castors No
Bracket Pt No
Inserts / Fly
Points:
No
