100W Loudspeaker – 6.5″ Bass: Installed Sound IS7

Installed Sound Range: IS7 – Logic Systems Pro Audio

Installed Sound Range

The Logic Systems Pro Audio IS7 100w loudspeaker cabinet combines a 6.5 inch mid/bass cone with a titanium dome HF. The cabinet is part of the IS Series which is aimed specifically at the Bar and Club installation market. The IS Series are available with a range of bracket options to aid installation and can also be ordered in special colours to fit the needs of the designers. Standard colors are black and white.

The IS Series aims to bring both an audio and build quality that is not common at this price point. To this end all IS Series cabinets are constructed from birch ply and are rebated, glued and screwed. Additionally all audio components are sourced from within the EU.

Additional Note:

1.) Sensitivity measured at 1 meter with 2.83V, using band limited pink noise.

2.) Please note that IS7 cabinets are supplied boxed in pairs.

Technical Information:

Technical Specification
Frequency Response 70Hz – 20kHz
Components Bass/mid: 6.5″ cone driver
HF: Titanium dome
Power Handling 100w
Sensitivity (1) 94dB
Directivity 100 Conical above 2kHz
Impedance 8 ohms nominal
Construction 15mm Birch plywood
Finish Water based textured black paint
Connections 1 x Neutrik NL4 MPR
1+/2+ = Positive Input 1-/2- = Negative Input

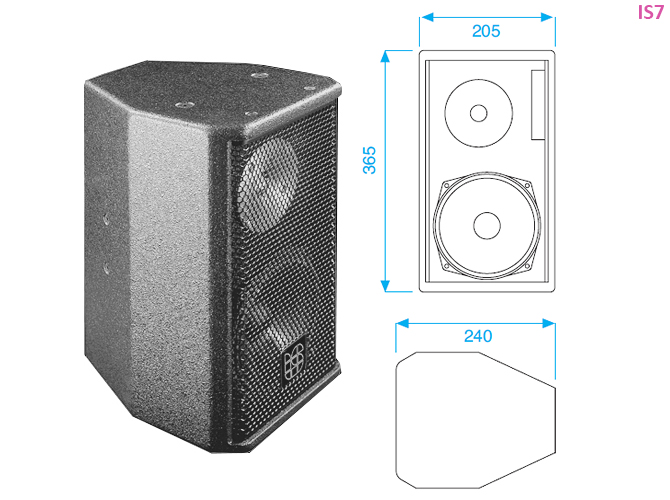

Dimensions 205mm (W) x 365mm (H) x 240mm (D)
Packaged Dimensions (2) 330mm (W) x 520mm (H) x 675mm (D)
Weight 8 KG

Cabinet Information:

CABINET SPEC
Cabinet IS7
Handles No
Tophat No
M20 Plate No
Castors No
Bracket Pt Black/Side
Inserts / Fly
Points:
6 OFF M8
