200W Loudspeaker – 8″ Bass: Installed Sound IS8
Installed Sound Range: IS8 – Logic Systems Pro Audio
Installed Sound Range
The Logic Systems Pro Audio IS8 200w loudspeaker cabinet combines an 8 inch mid/bass cone with a 1” compression driver on a 90° x 60° horn flare. The cabinet is part of the IS Series which is aimed specifically at the Bar and Club installation market. The IS Series are available with a range of bracket options to aid installation and can also be ordered in special colours to fit the needs of the designers.
Standard colours are black and white. The IS Series aims to bring both an audio and build quality that is not common at this price point. To this end all IS Series cabinets are constructed from birch ply and are rebated, glued and screwed. Additionally all audio components are sourced from within the EU.
Additional Note:
1.) Sensitivity measured at 1 meter with 2.83V, using band limited pink noise.
2.) Please note that IS8 cabinets are supplied boxed in pairs.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 60Hz – 18kHz |
| Components | Bass/mid: 8″ cone driver HF: 1″ exit compression driver |
| Power Handling | 200w |
| Sensitivity (1) | 96dB |
| Directivity | 90 x 60 above 2kHz |
| Impedance | 8 Ohm nominal |
| Construction | 15mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | 1 x Neutrik NL4 MPR 1+/2+ = Positive Input 1-/2- = Negative Input |

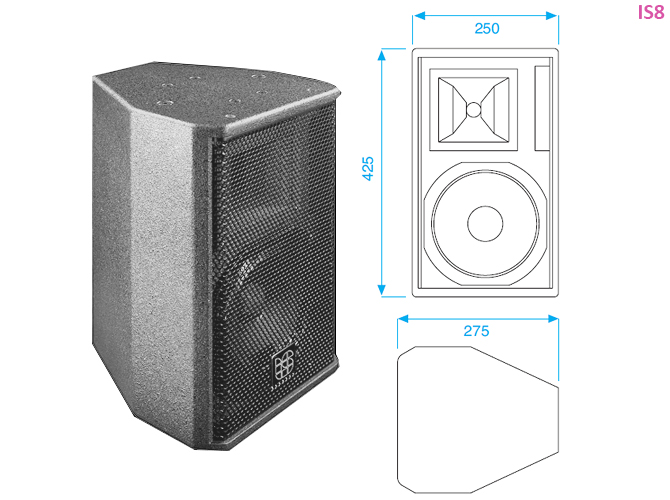

| Dimensions | 250mm (W) x 425mm (H) x 275mm (D) |
| Packaged Dimensions (2) | 380mm (W) x 580mm (H) x 740mm (D) |
| Weight | 12 KG |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | IS8 |
| Handles | No |
| Tophat | No |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | Black/Top/Side |
| Inserts / Fly Points: |
6 OFF M8 Inserts |
