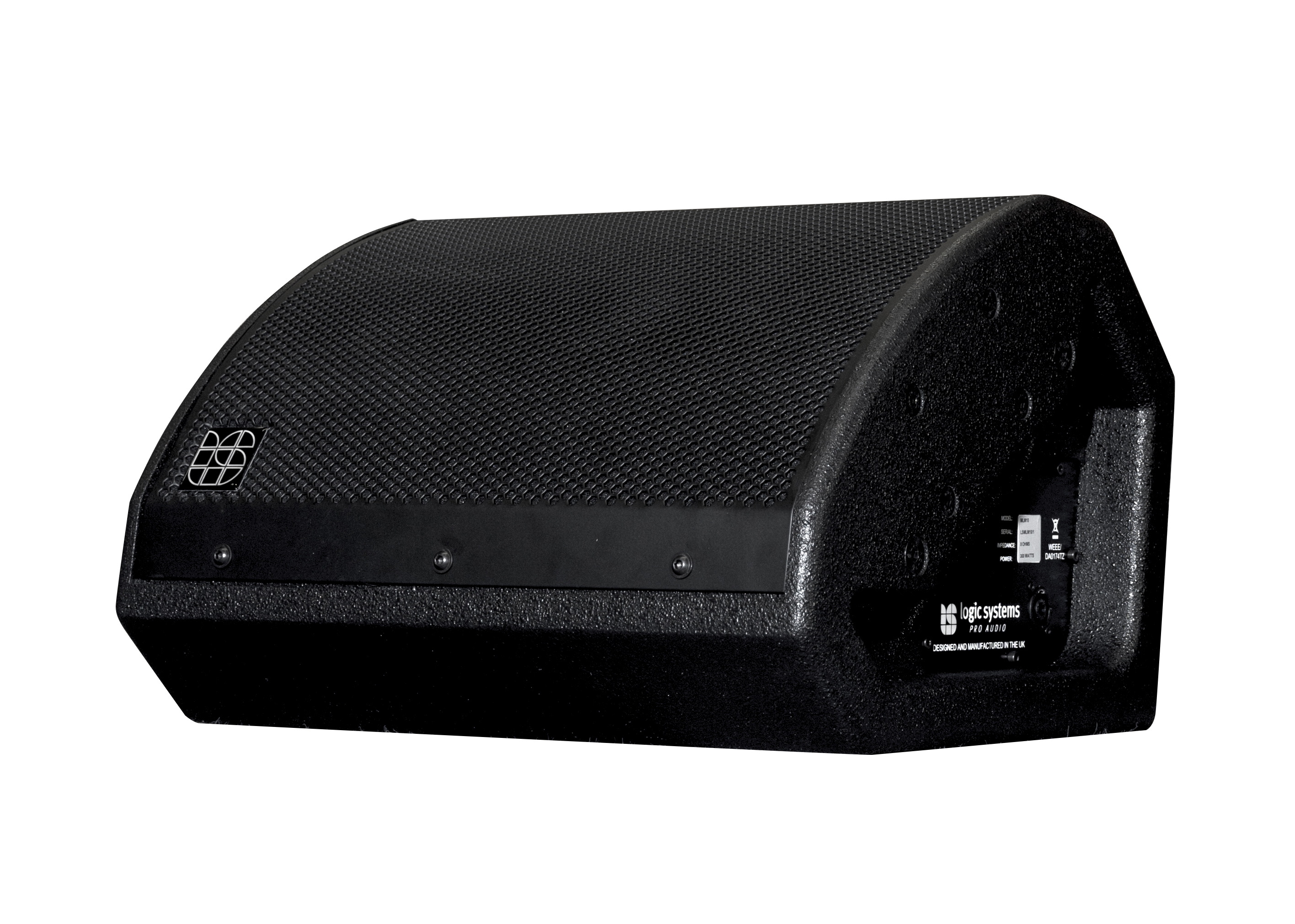

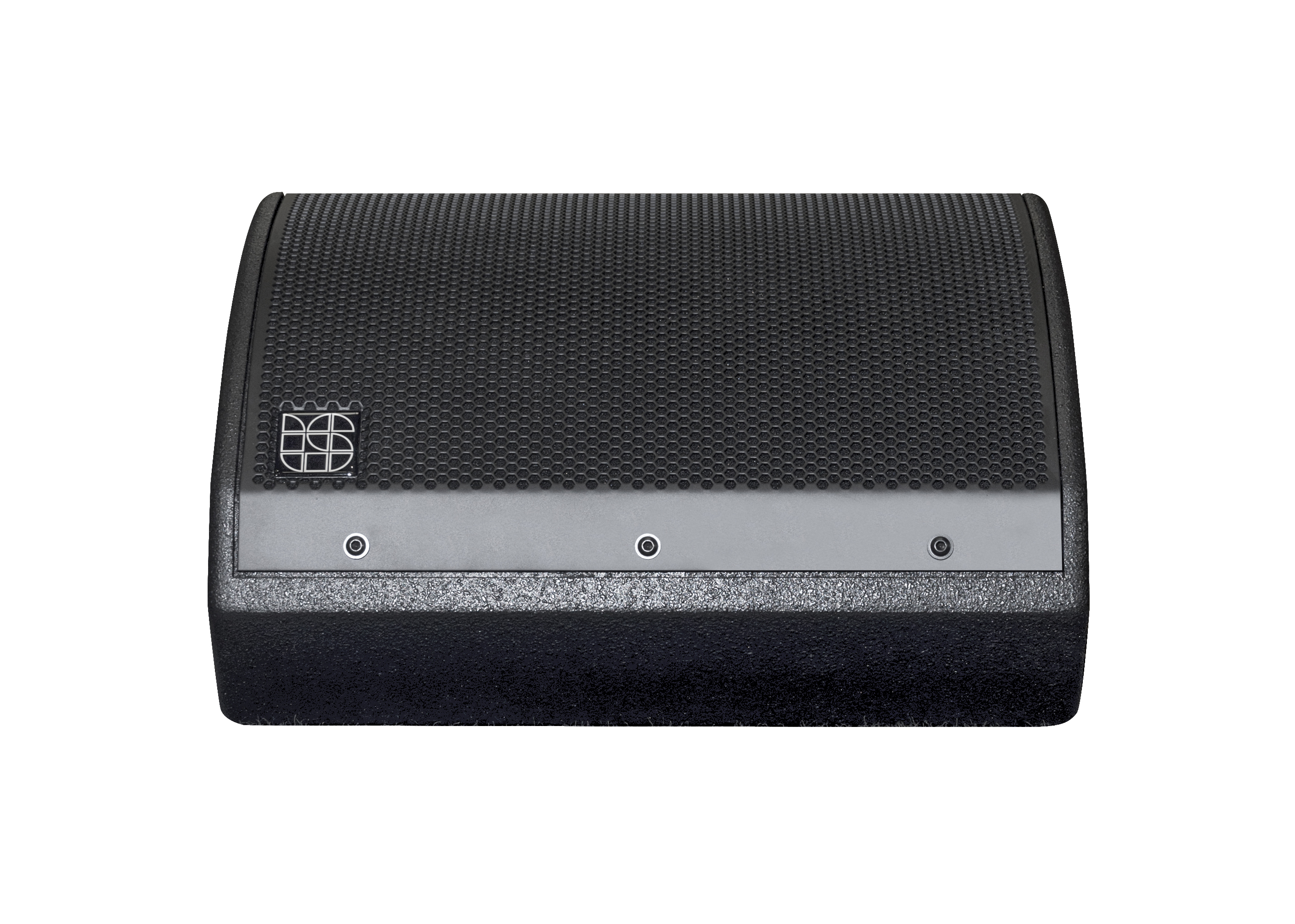

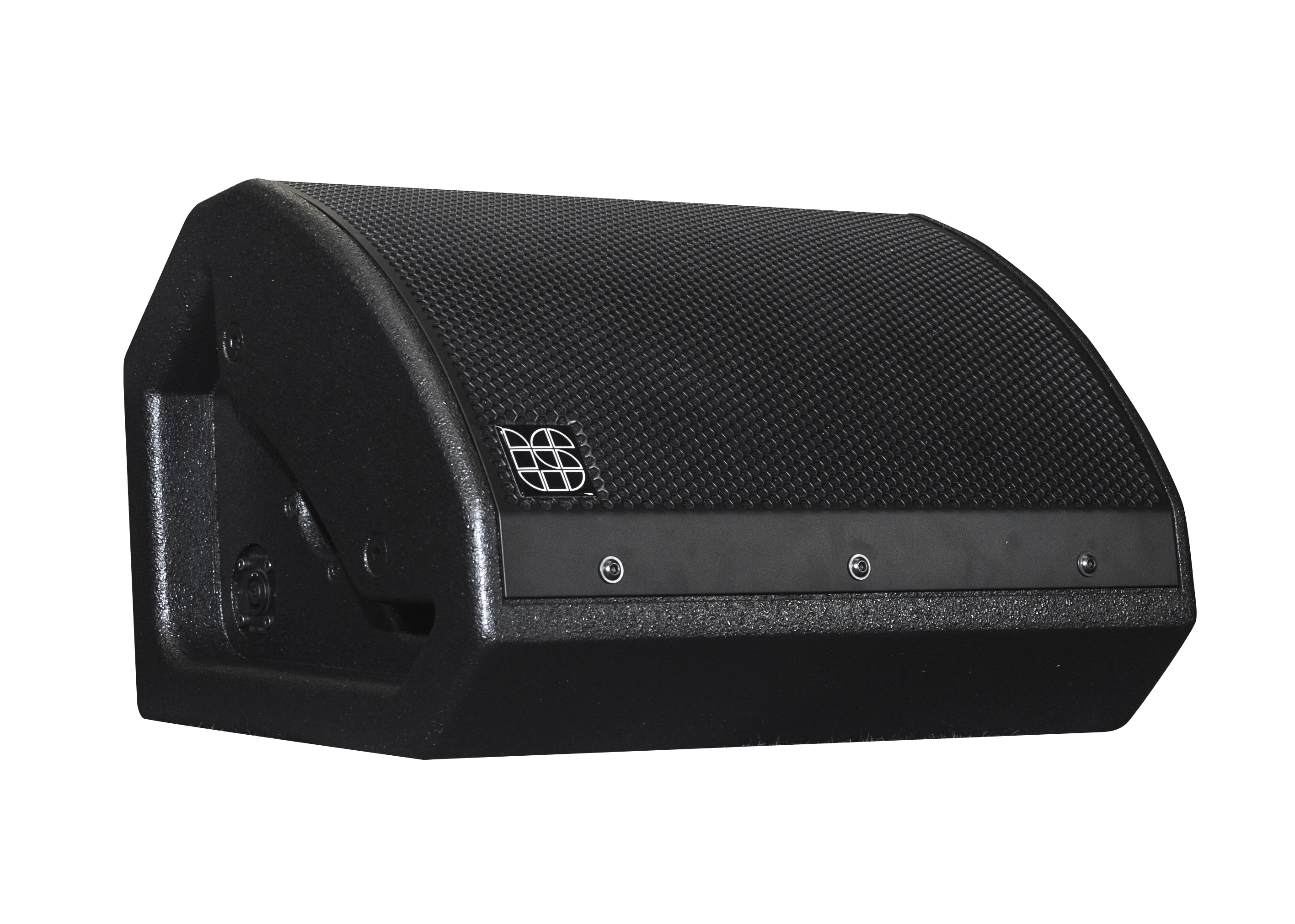

MLM10 Multifunction Sound Stage Monitor

Logic Systems Pro Audio

300W Sound Stage Monitor

The MLM Series is a range of state of the art live sound stage monitors. The MLM10 cabinet combines a 10” Mid/Bass cone with a coaxially mounted 2.5” HF voice coil, which is passively crossed over. The coaxial layout has many acoustic advantages and also means that with a centrally mounted HF driver matched pairs are not required. To aid functionality the cabinet also benefits from a tophat mount which enables the cabinet to be used for small front of house applications.

The monitor also benefits from being low profile to improve those all important sight lines. Another useful feature is link through speakons on the cabinet ends, ensuring neat cabling when used as pairs.

Technical Information:

Technical Specification
Frequency Response 75Hz – 20kHz
Components Bass/mid: 10” cone driver
HF: 2.5” voice coil, coaxially mounted
Power Handling 300w
Sensitivity 96dB
Directivity 60° conical above 1kHz
Impedance 8 Ohms nominal
Construction 15mm & 24mm Birch plywood
Finish Water based textured black paint
Connections 2 x Neutrik NL4 connectors
1+/1- Input 2+/2- no connection
Dimensions 440mm (W) x 285mm (H) x 385mm (D)
Packaged Dimensions 585mm (W) x 415mm (H) x 515mm (D)
Weight 15 KG

Cabinet Information:

Cabinet MLM10
Handles Yes
Tophat Yes
M20 No
Castors No
Bracket Pt. Yes
Inserts / Fly
