HPLS 6 Standard Line

HPLS 6 Standard Line – Logic Systems Pro Audio

High Power Line Source Loudspeakers

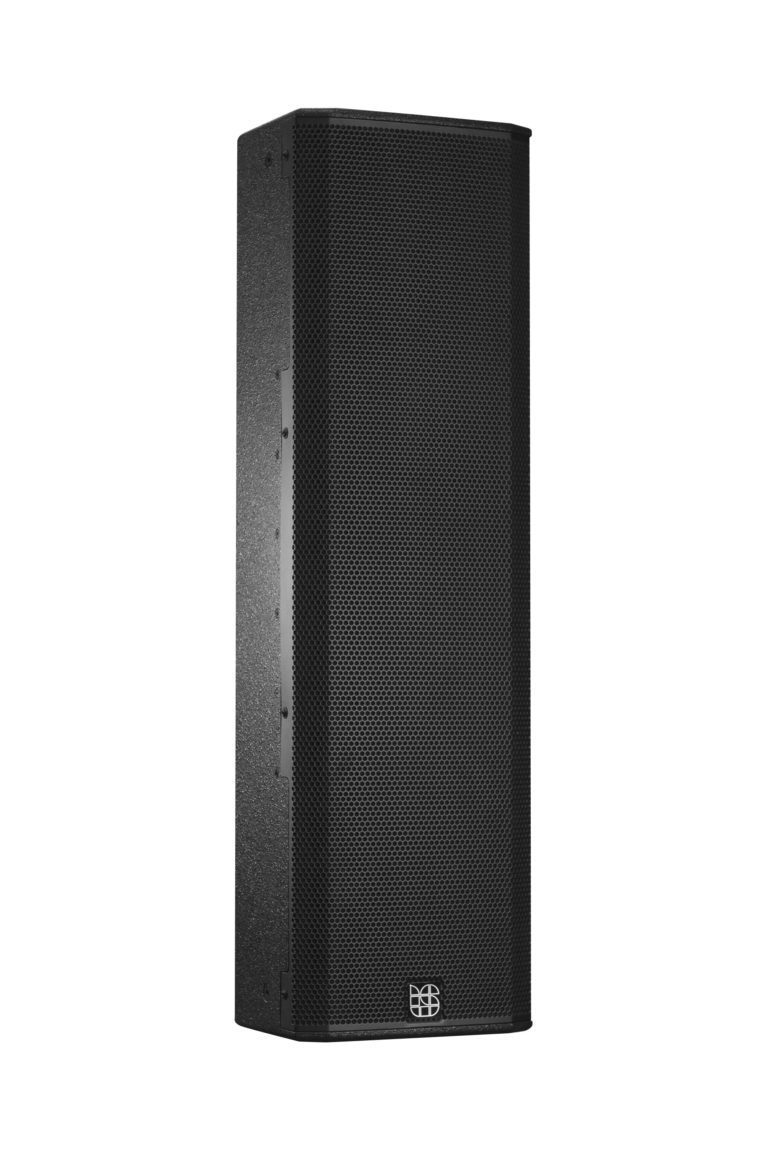

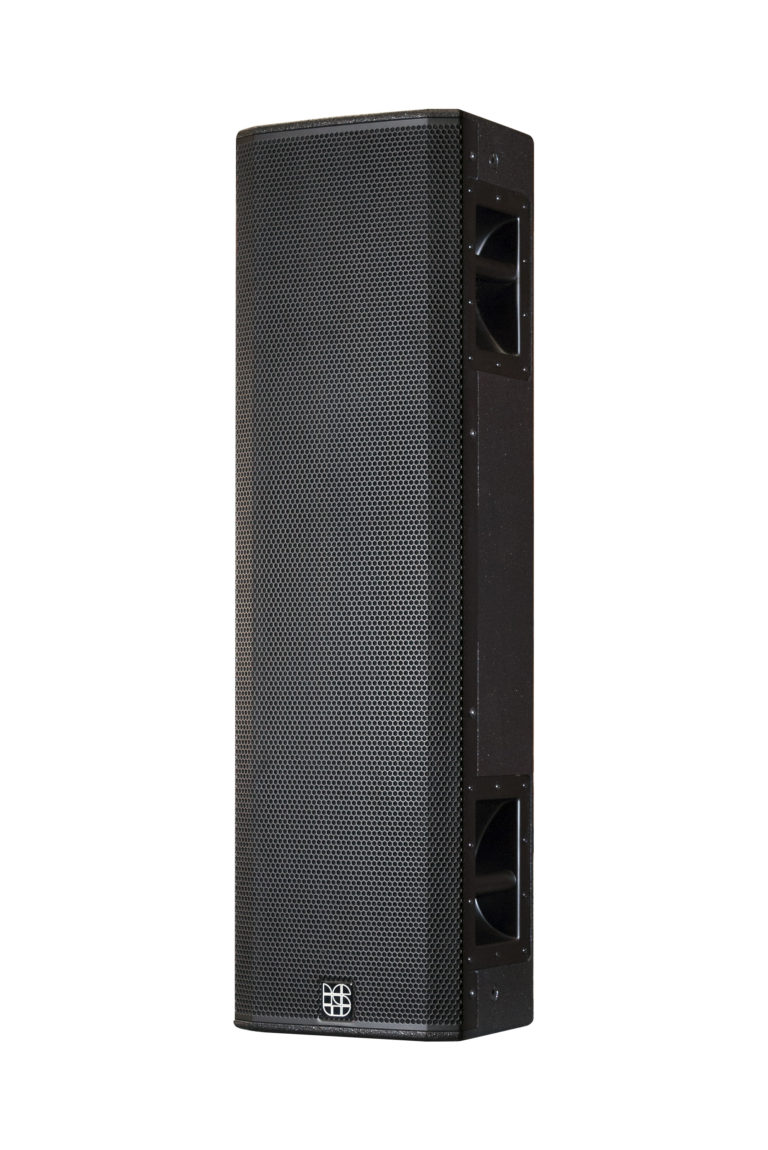

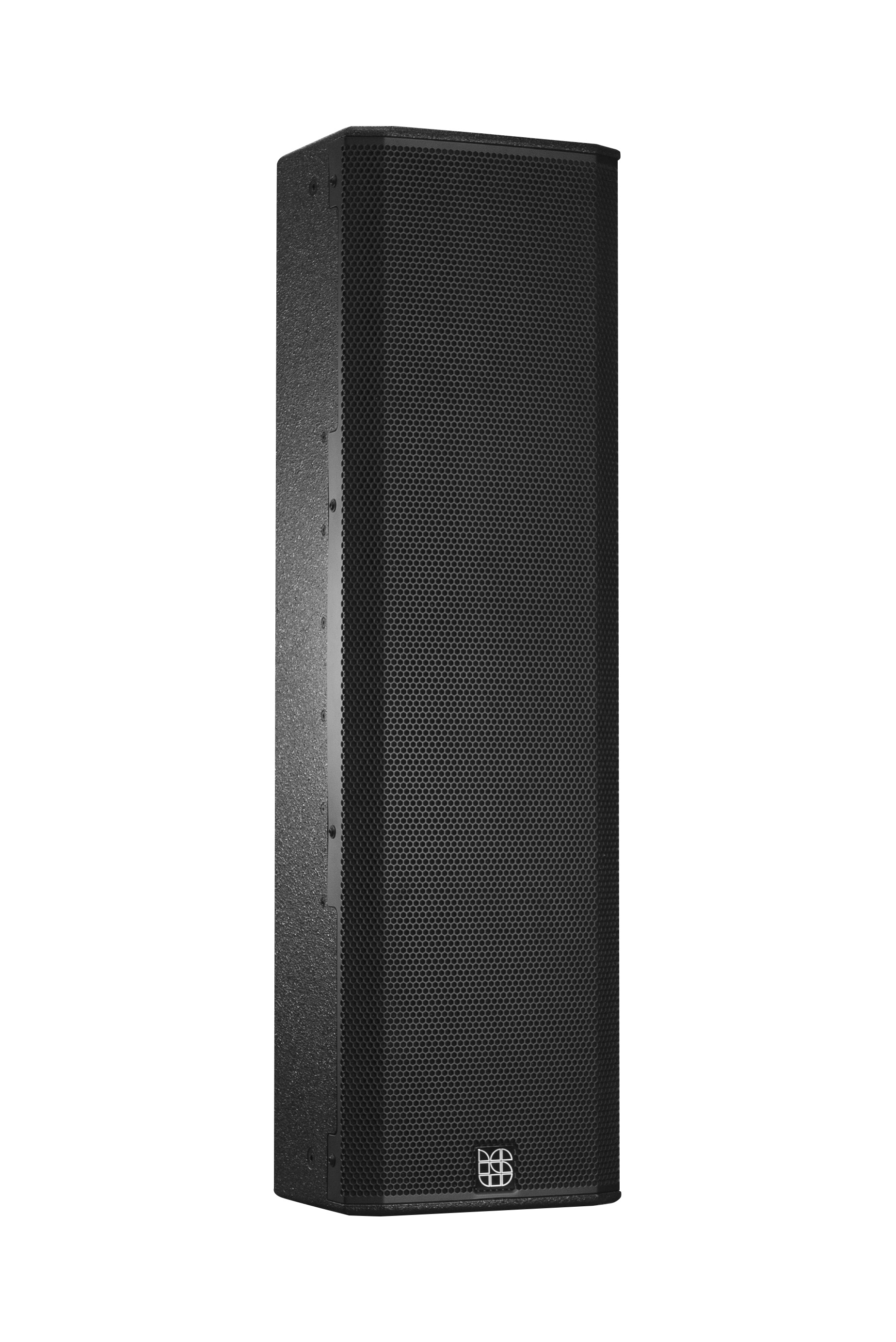

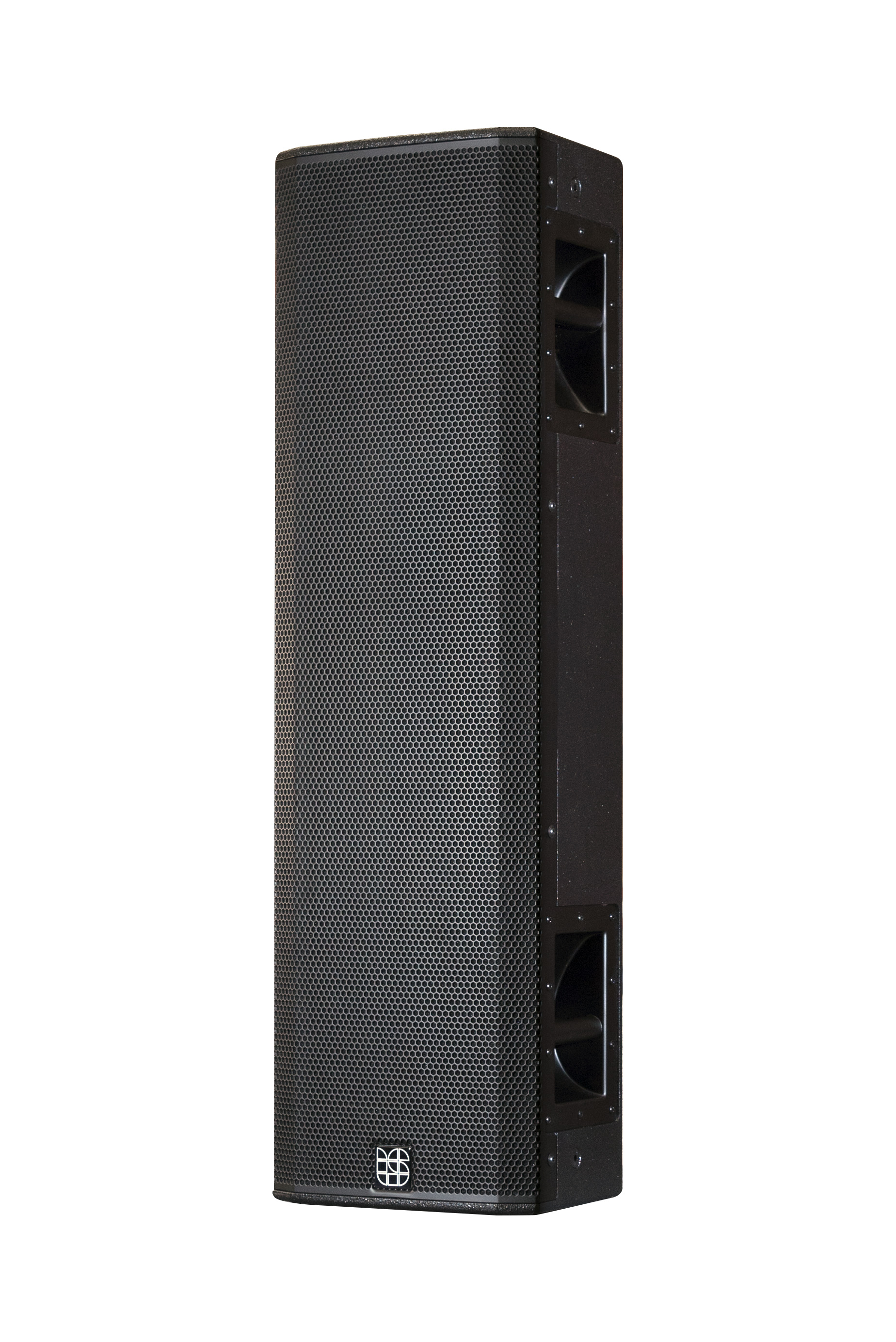

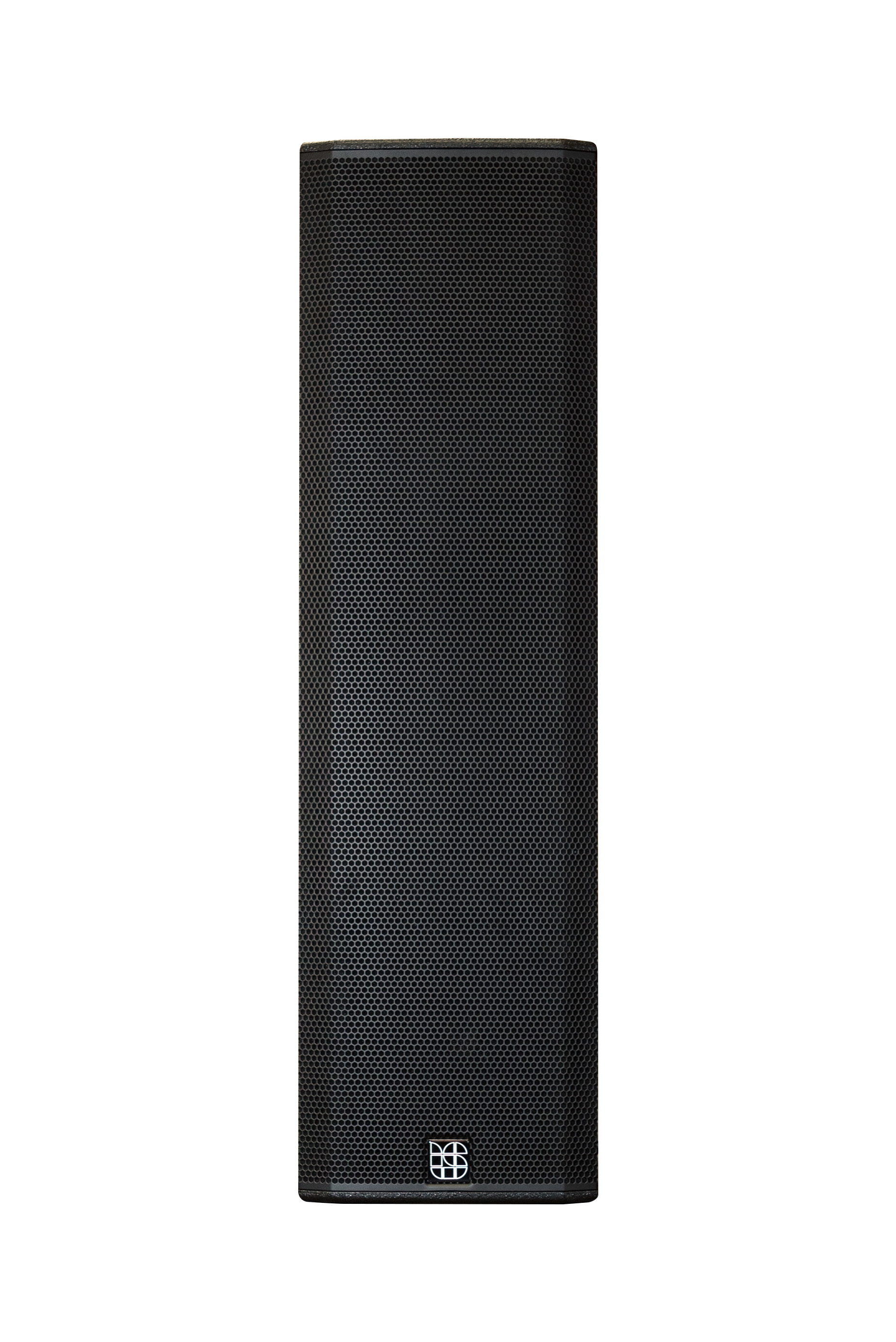

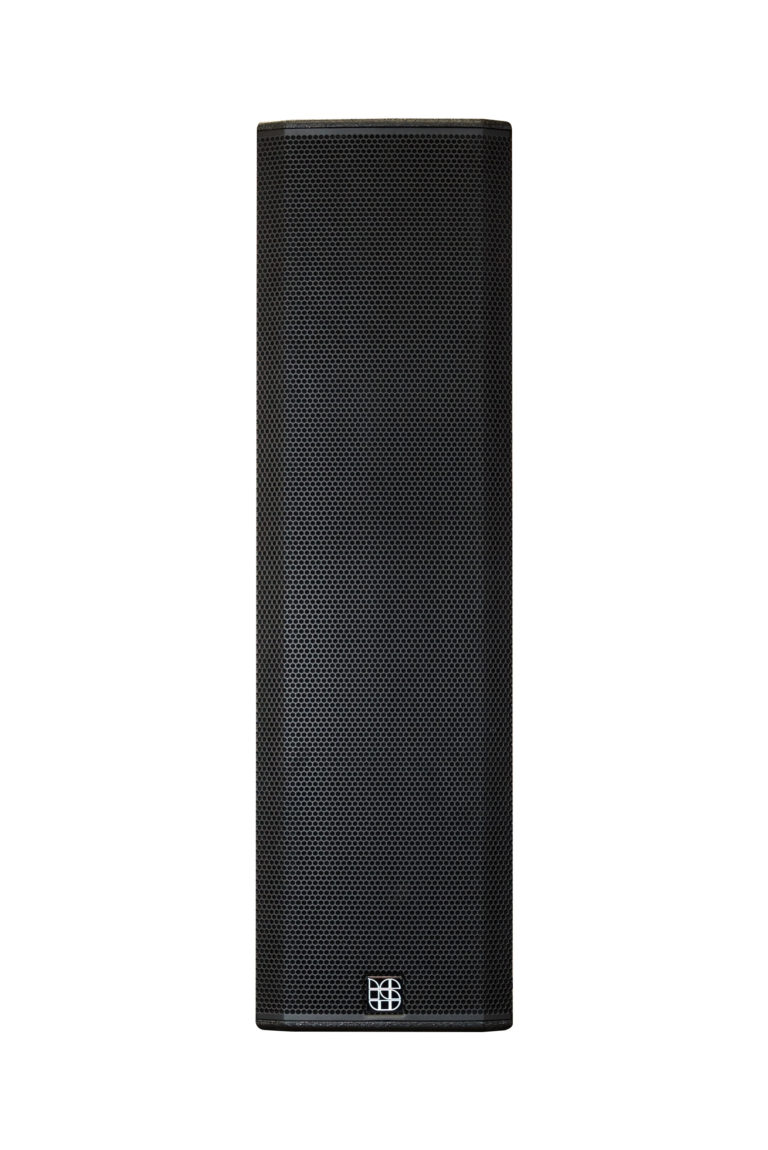

High Power Mid/High Frequency Loudspeaker. Designed for used in portable & fixed installations. The HPLS 6 has an operating frequency range 100Hz-18kHz.The loudspeaker is to be used with a range of Logic Systems Bass Enclosures using the matching limiter/crossover unit.The format is a vertical line arrangement with integral vertical high frequency line using neodymium components. The loudspeaker uses 6x6” mid frequency drivers & 6x1” compression drivers.

All of the Logic Systems line source loudspeakers are primarily intended for ‘flat floor’ applications where large areas can be covered evenly with minimum excitation of floor and ceiling reflections. The cylindrical audio wave-front produced by these loudspeakers means that the sound level only decreases by 3dB each time the distance from the loudspeaker is doubled giving good coverage distances before the cylindrical properties are lost. For example the HPLS 4 has a range of 20 metres, the HPLS 6 is 40 metres and the HPLS 8 is 80 metres.

Technical Information:

Technical Specification
Frequency Response 100Hz – 18kHz
Components High Efficiency Neodymium
Power Handling 1200w (AES)
Sensitivity 94dB
Directivity 90 x 15
Impedance 6 Ohm
Construction 15mm Birch plywood
Finish Water based textured black paint
Connections 1+/1-N/c 2+/2-Input
Dimensions 300mm (W) x 1060mm (H) x 220mm (D)
Packaged Dimensions 440mm (W) x 1195mm (H) x 350mm (D)
Weight 30 KG

Cabinet Information:

Cabinet HPLS 6
Handles Yes
Tophat Yes
M20 Plate No
Castors No
Bracket Pt No
Inserts / Fly
