High Power Line Source Loudspeakers

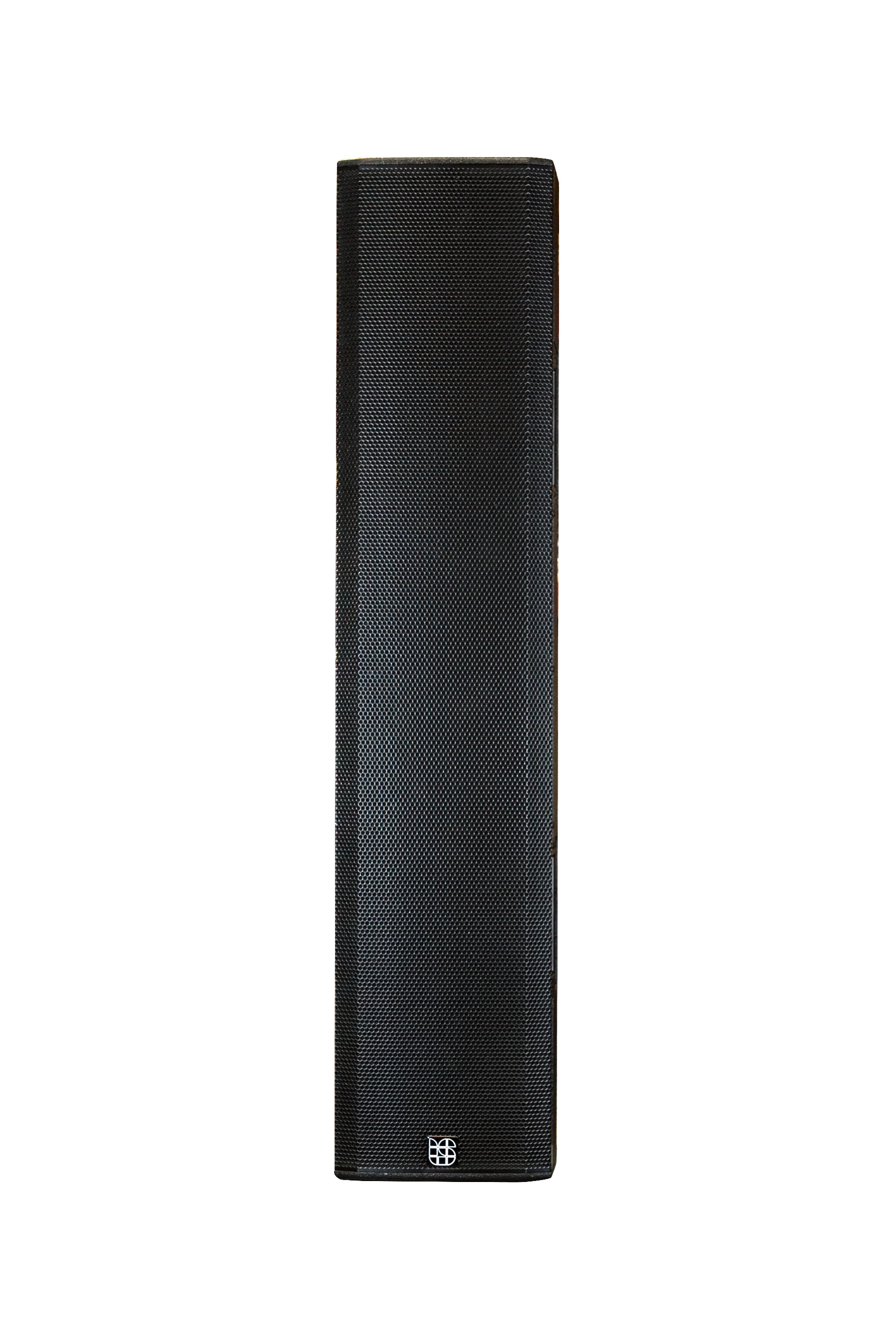

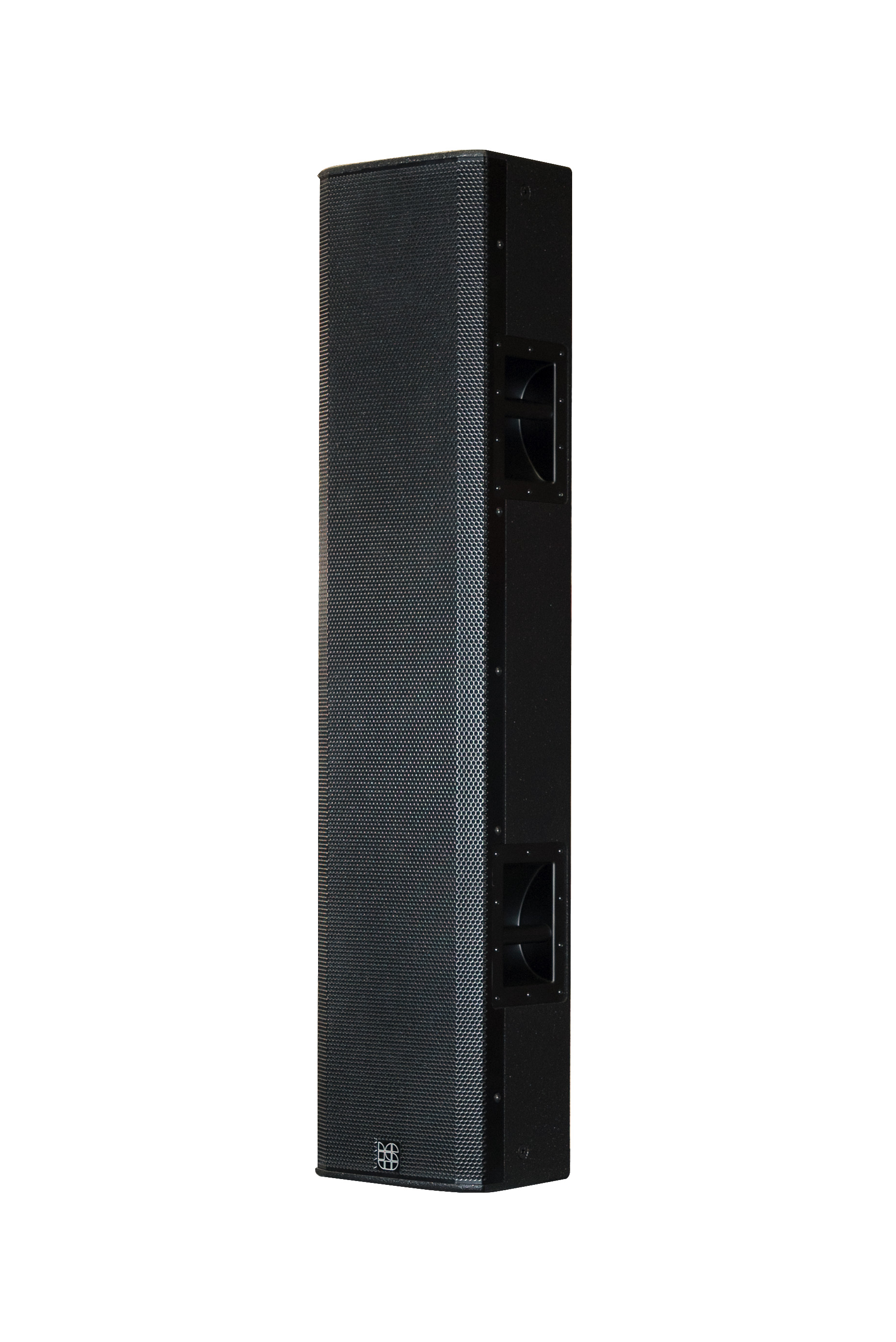

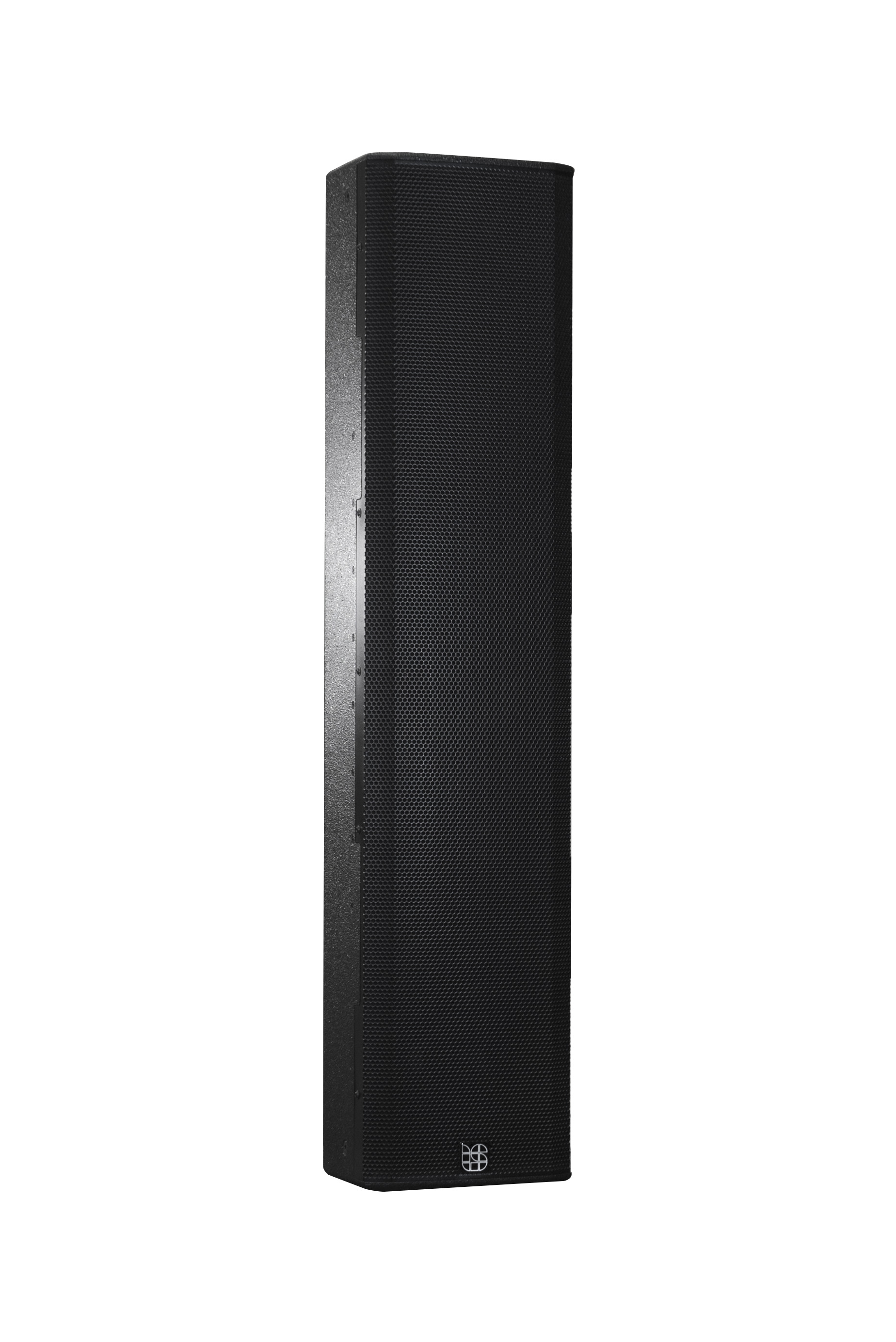

High Power Mid/High Frequency Loudspeaker. Designed for use in portable & fixed installations.. The HPLS 8 has an operating frequency range 100Hz-18kHz.The loudspeaker is to be used with a range of Logic Systems Bass Enclosures using the matching limiter/crossover unit.The format is a vertical line arrangement with integral vertical high frequency line using neodymium components.The loudspeaker uses 8x6” mid frequency drivers & 8x1” compression drivers.
All of the Logic Systems line source loudspeakers are primarily intended for ‘flat floor’ applications where large areas can be covered evenly with minimum excitation of floor and ceiling reflections. The cylindrical audio wave-front produced by these loudspeakers means that the sound level only decreases by 3dB each time the distance from the loudspeaker is doubled giving good coverage distances before the cylindrical properties are lost. For example the HPLS 4 has a range of 20 metres, the HPLS 6 is 40 metres and the HPLS 8 is 80 metres.
|Frequency Response||100Hz – 18kHz|
|Components||High Efficiency Neodymium|
|Power Handling||1600w (AES)|
|Directivity||90 x 15|
|Construction||15mm Birch plywood|
|Finish||Water based textured black paint|
|Dimensions||300mm (W) x 1400mm (H) x 220mm (D)|
|Packaged Dimensions||440mm (W) x 1535mm (H) x 350mm (D)|
|Inserts / Fly
