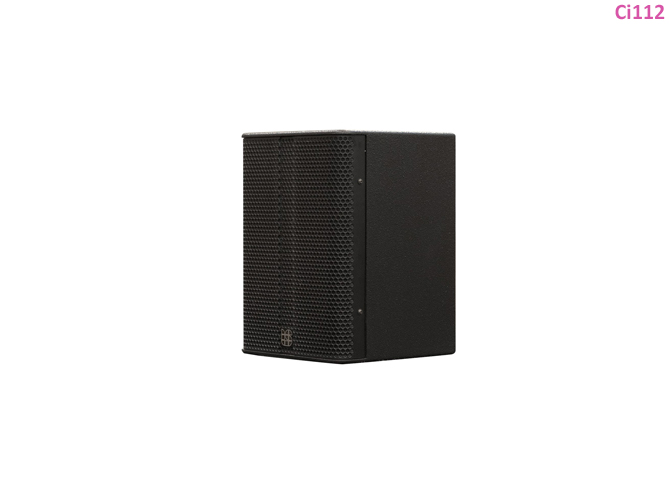

Compact Installation Ci112
The Logic Systems Ci112 is a compact, high power, bass enclosure which features a direct radiating 12” bass driver. The Ci112 is installation specific. Corner porting also ensures uniformity of performance when mounted in either the landscape or portrait modes.
Additional Note:
1.) Sensitivity measured at 1 metre with 2.83V, using band limited pink noise.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 50Hz – 150Hz |
| Components | Bass: 1 x 12” cone driver HF: N/A |
| Power Handling | 500w |
| Sensitivity (1) | 95dB |
| Directivity | Omni-directional |
| Impedance | 8 Ohms |
| Construction | 15mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | Phoenix screw terminal connector (supplied) |
| Dimensions | 360mm (W) x 505mm (H) x 360mm (D) |
| Packaged Dimensions | 490mm (W) x 670mm (H) x 490mm (D) |
| Weight | 17Kg |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | Ci112 |
| Handles | No |
| Tophat | No |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | No |
| Inserts / Fly Points: |
No |
