NB18 Notion Sound 1200W Portable Loudspeaker
Logic Systems Pro Audio
1200W Portable Loudspeaker

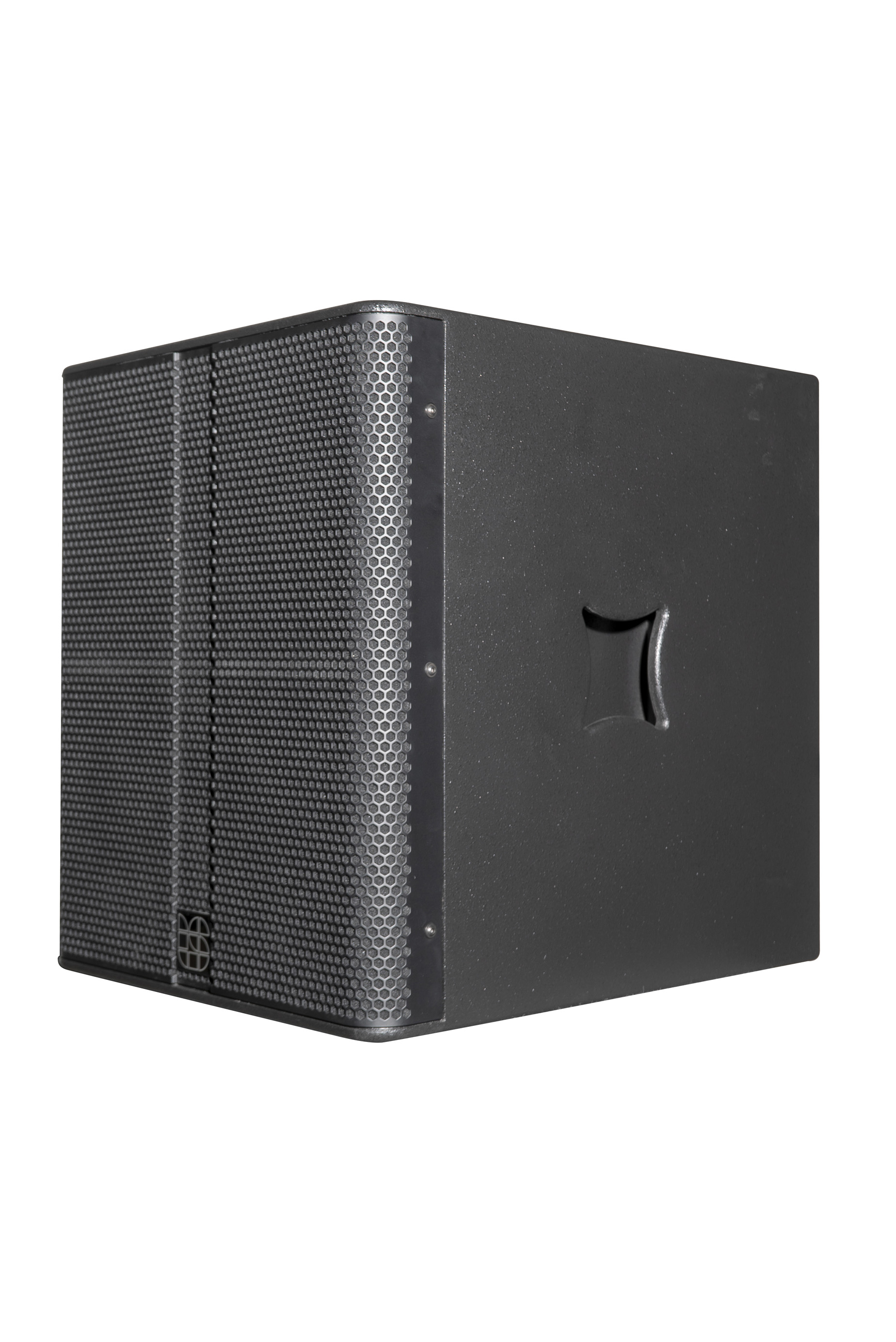

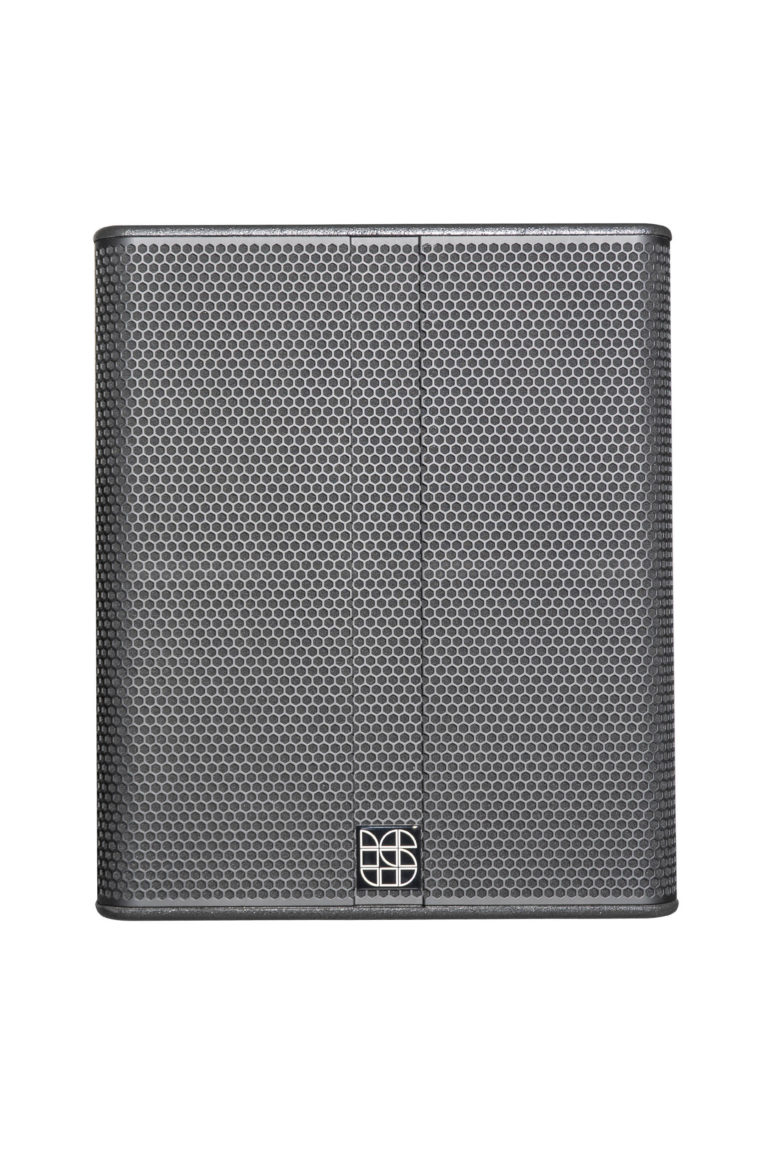

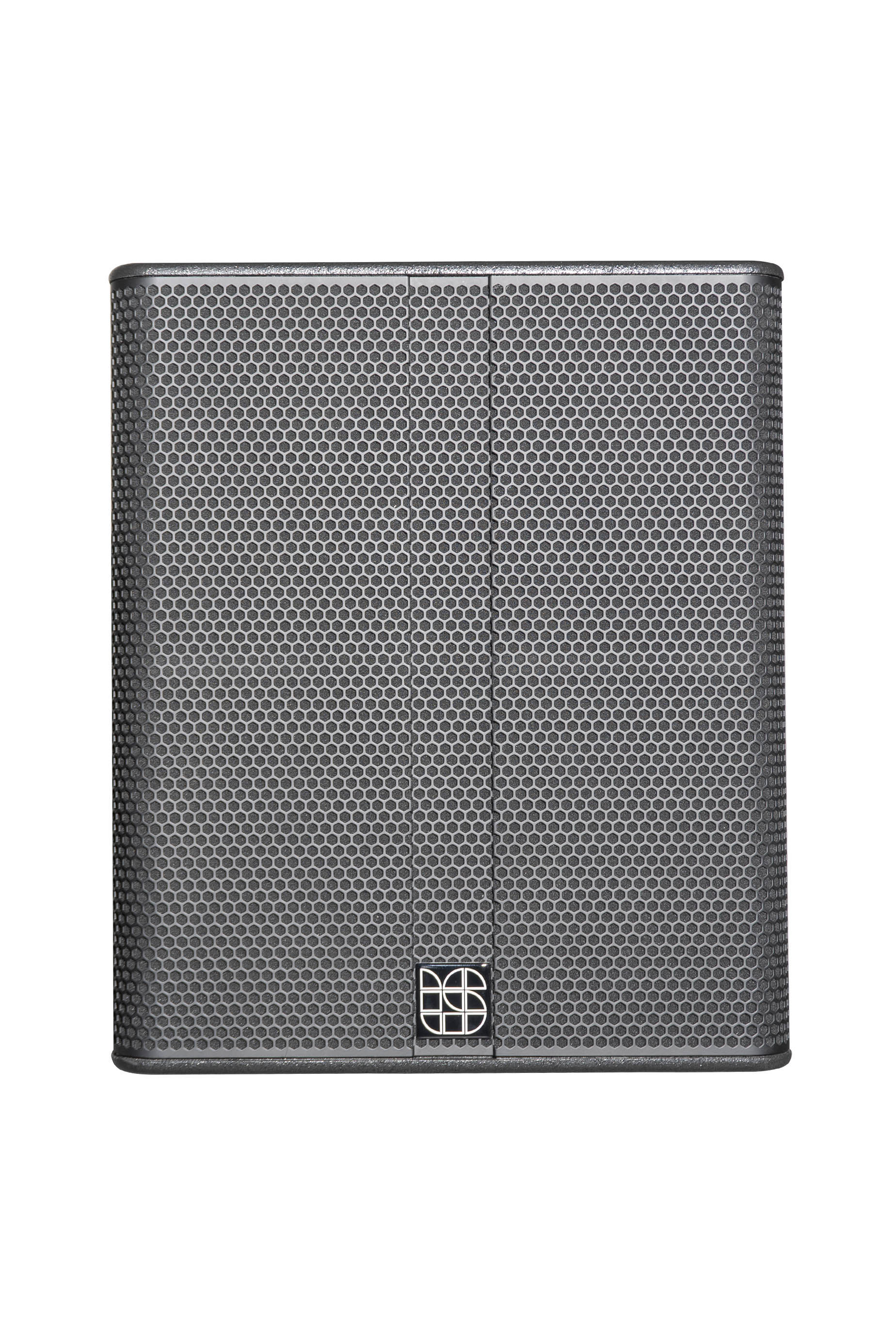

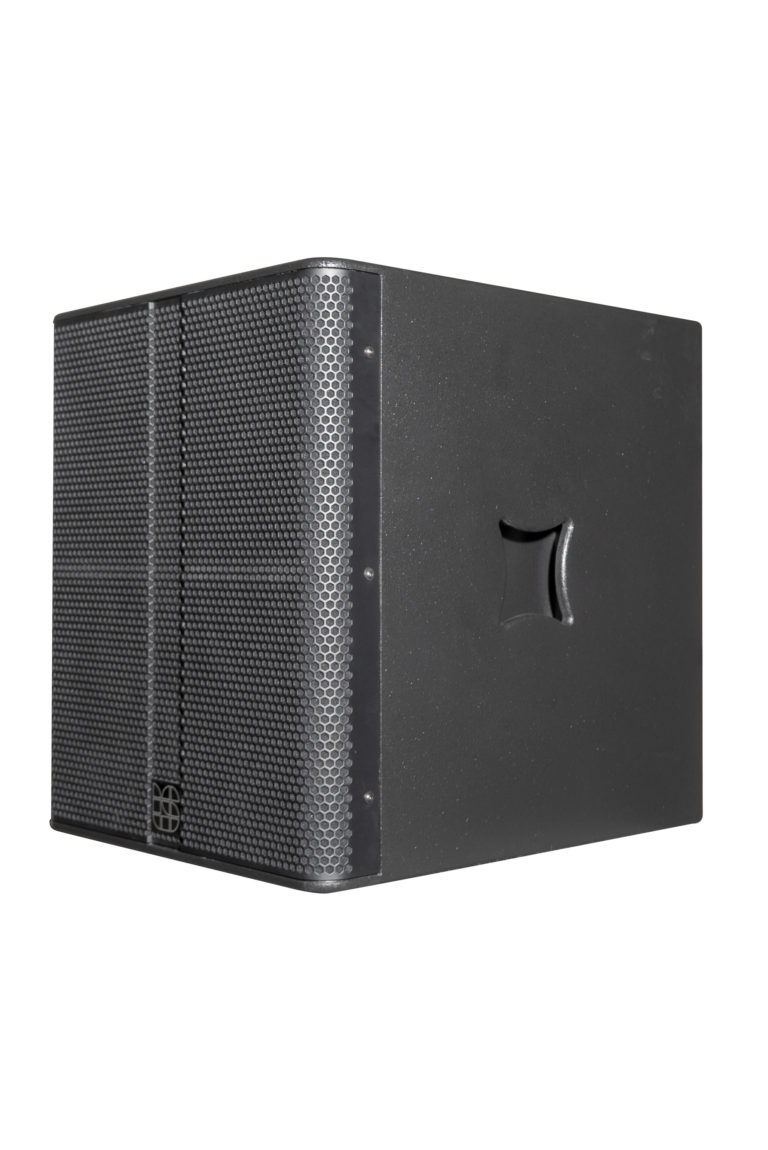

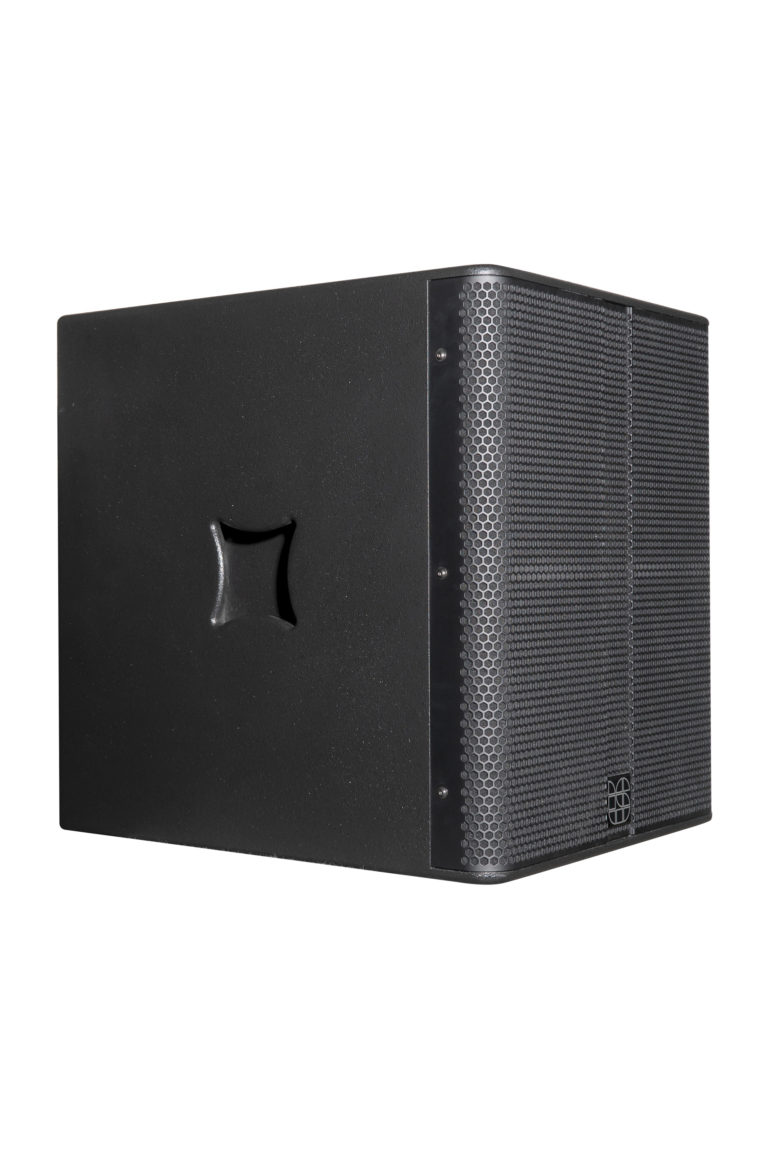

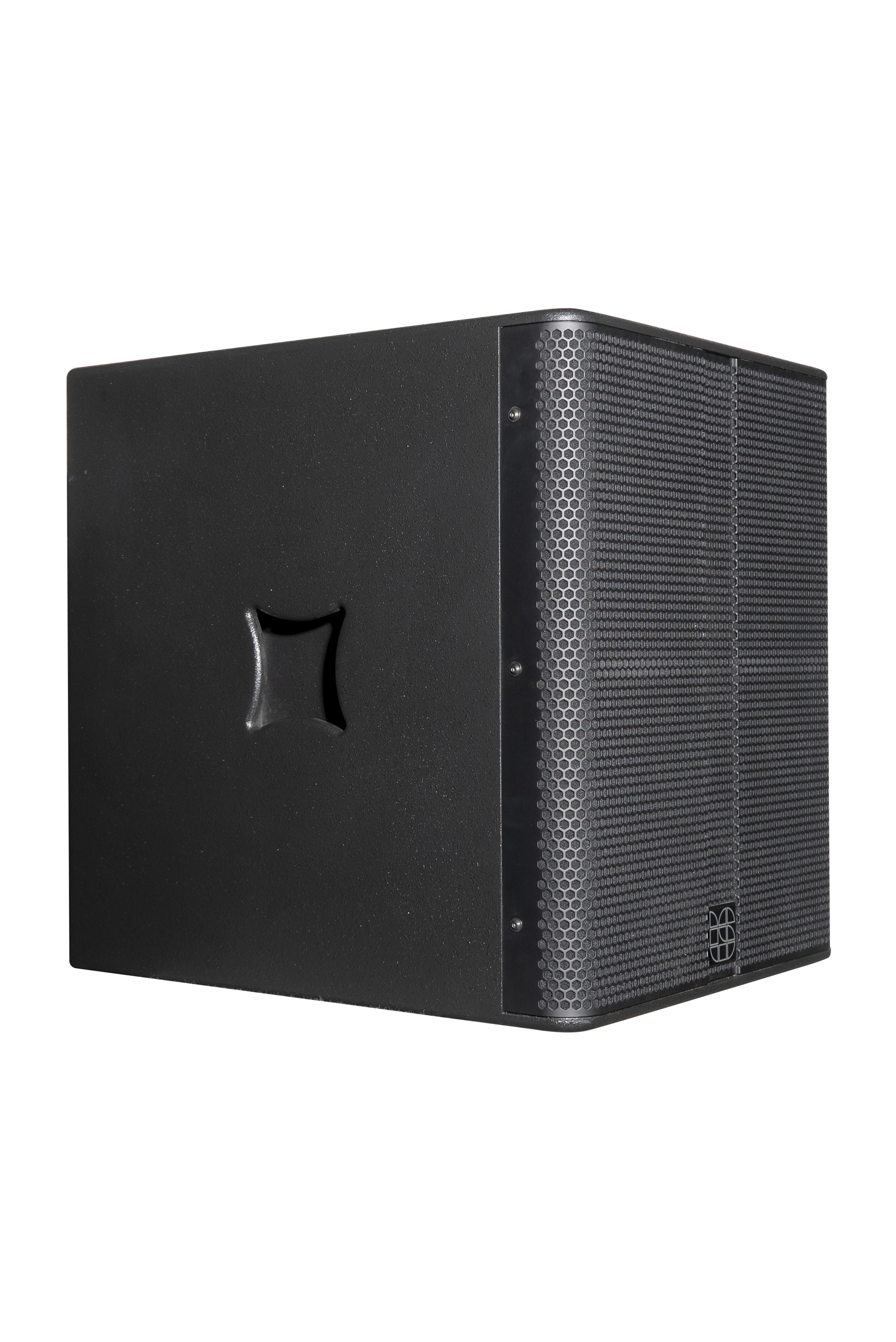

The Logic Systems Notion B18 is a compact, high power, bass enclosure which features a direct radiating 18” neodymium bass driver. The Notion B18 was designed to be used as an integrated system with the Notion N12 or N14 enclosure, but also has applications as a compact bin for installation.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 35Hz – 150Hz |
| Components | Bass: 18” neodymium cone driver HF: N/A |
| Power Handling | 1200w |
| Sensitivity | 98dB |
| Directivity | Omni-directional |
| Impedance | 8 Ohm |
| Construction | 18mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | 2 x Neutrik NL4 connectors 1+/1- Input 2+/2- linked |
| Dimensions | 545mm (W) x 650mm (H) x 650mm (D) |
| Packaged Dimensions | 680mm (W) x 790mm (H) x 810mm(D) |
| Weight | 46 KG |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | Notion B18 |
| Handles | 2 off |
| Tophat | No |
| M20 | No |
| Castors | Yes |
| Bracket Pt. | N/A |
| Inserts / Fly Points: |
N/A |
