NB12 Notion Sound 500W Portable Loudspeaker
Logic Systems Pro Audio
500W Portable Loudspeaker

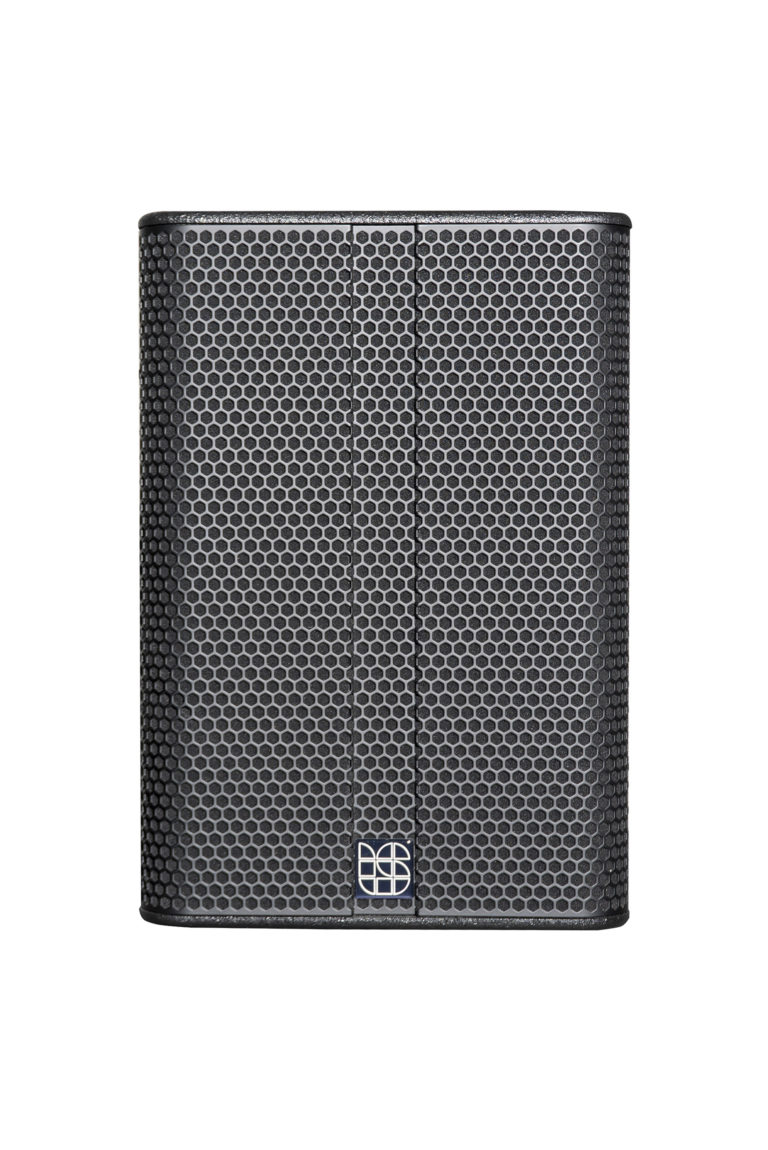

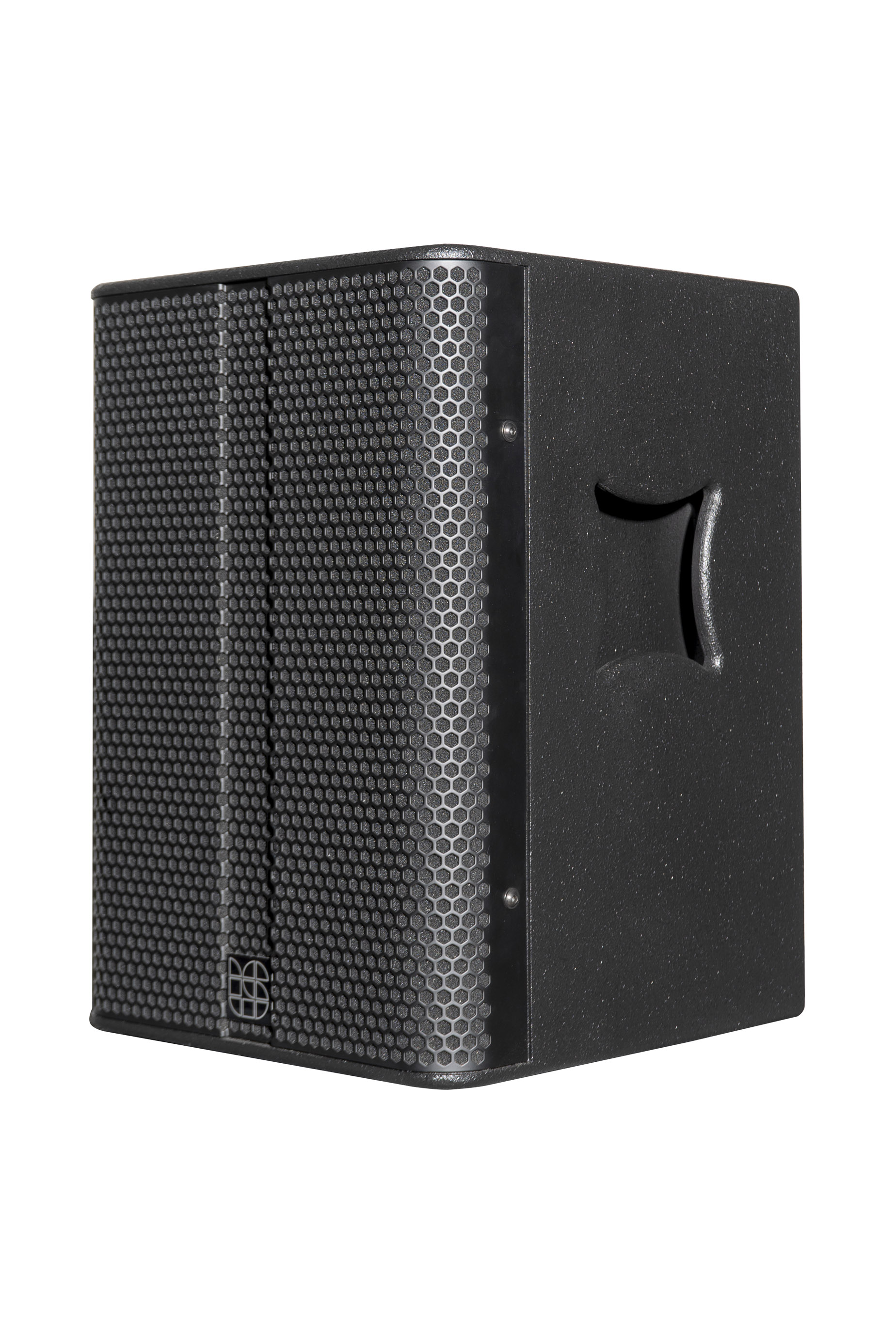

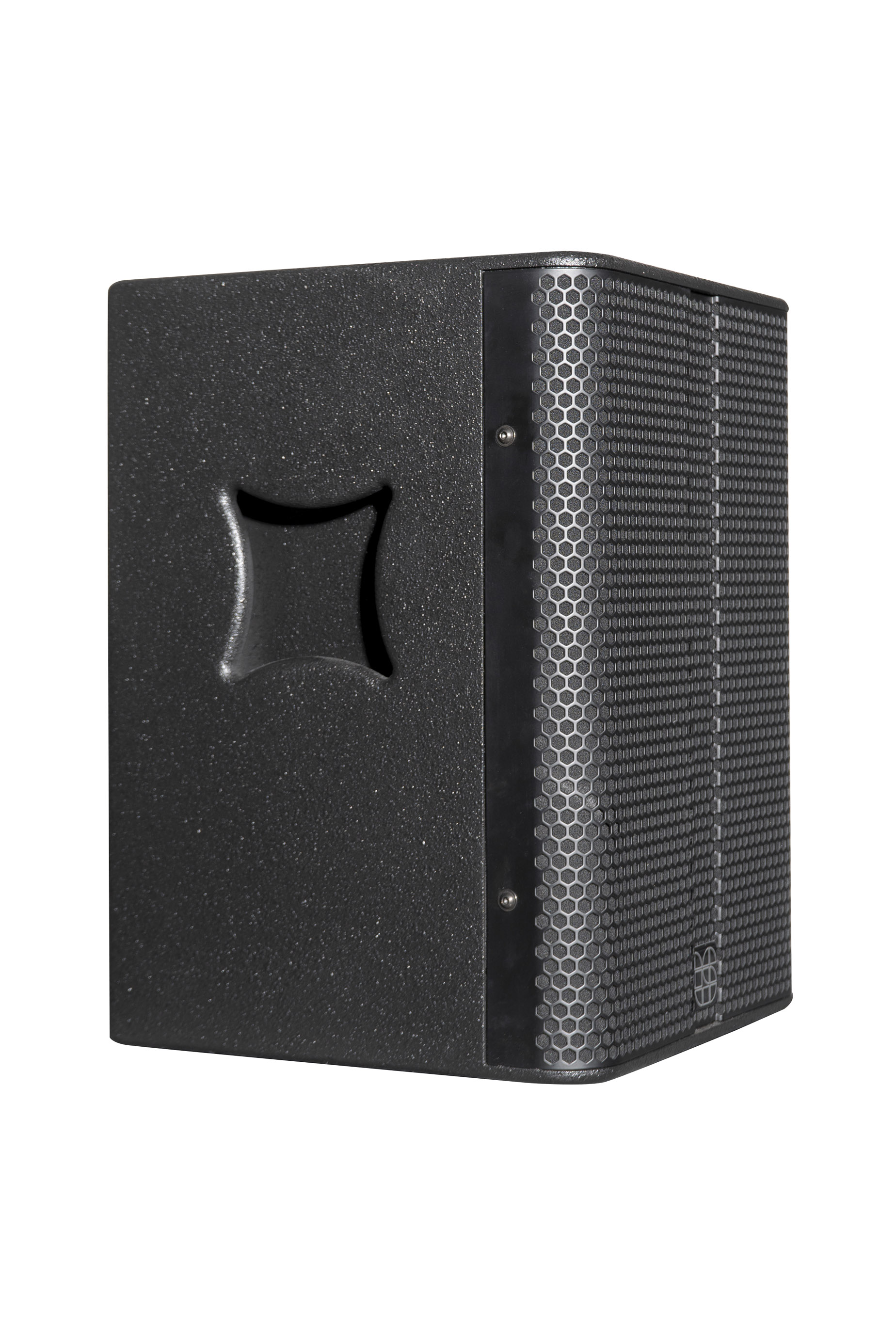

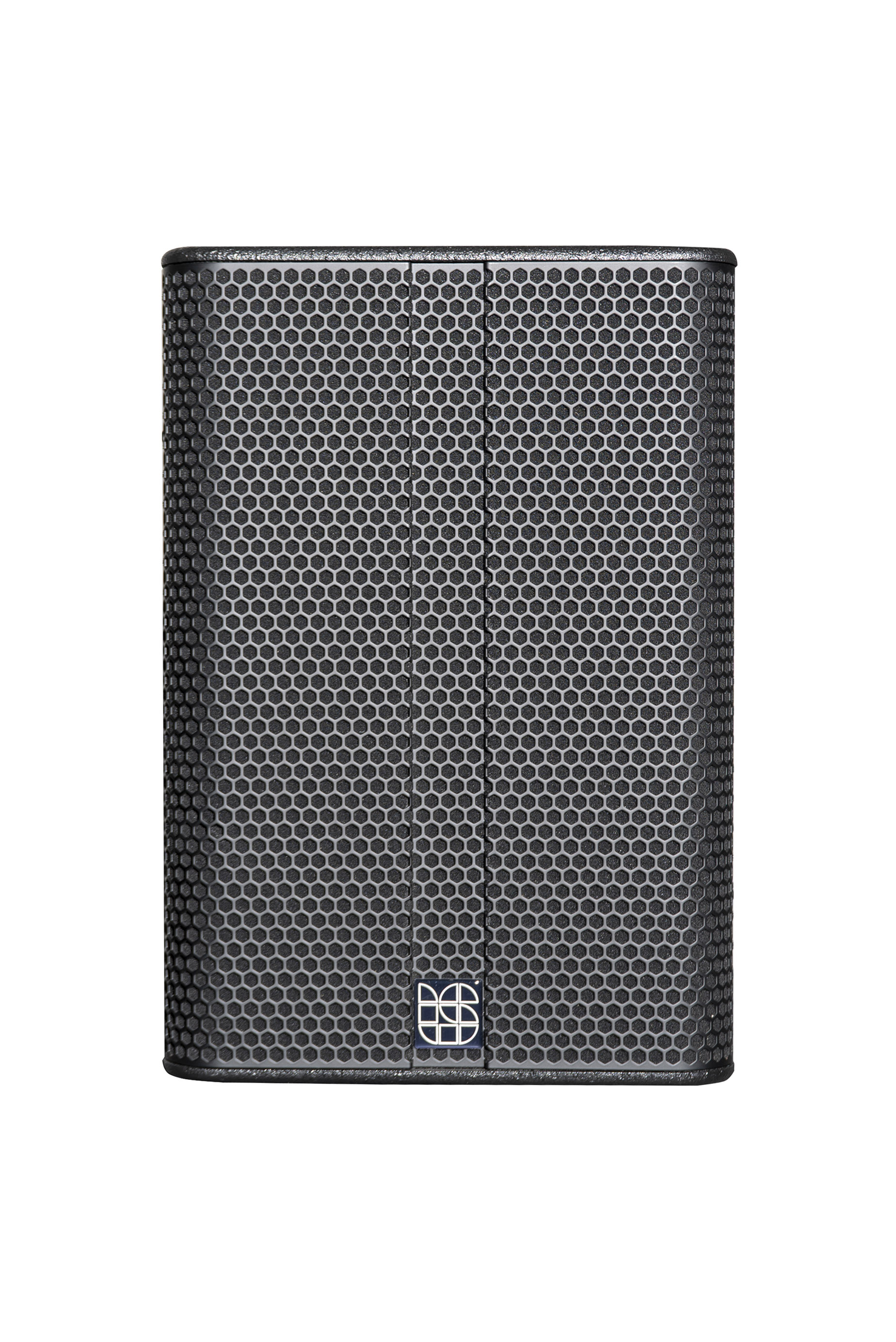

The Logic Systems Notion B12 is a compact, high power, bass enclosure which features a direct radiating 12” bass driver. The Notion B12 was designed to be used as an integrated system with the Notion N8 or N10 enclosure, but also has applications as a compact bin for installation.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 50Hz – 150Hz |
| Components | Bass: 12” cone driver HF: N/A |
| Power Handling | 500w |
| Sensitivity | 97.5dB |
| Directivity | Omni-directional |
| Impedance | 8 Ohm |
| Construction | 15mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | 2 x Neutrik NL4 connectors 1+/1- Input 2+/2- linked |
| Dimensions | 355mm (W) x 500mm (H) x 360mm (D) |
| Packaged Dimensions | 490mm (W) x 670mm (H) x 490mm(D) |
| Weight | 21 KG |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | Notion B12 |
| Handles | 2 off |
| Tophat | No |
| M20 | Yes |
| Castors | No |
| Bracket Pt. | N/A |
| Inserts / Fly Points: |
N/A |
