NB15 Notion Sound 700W Portable Loudspeaker
Logic Systems Pro Audio
700W Portable Loudspeaker

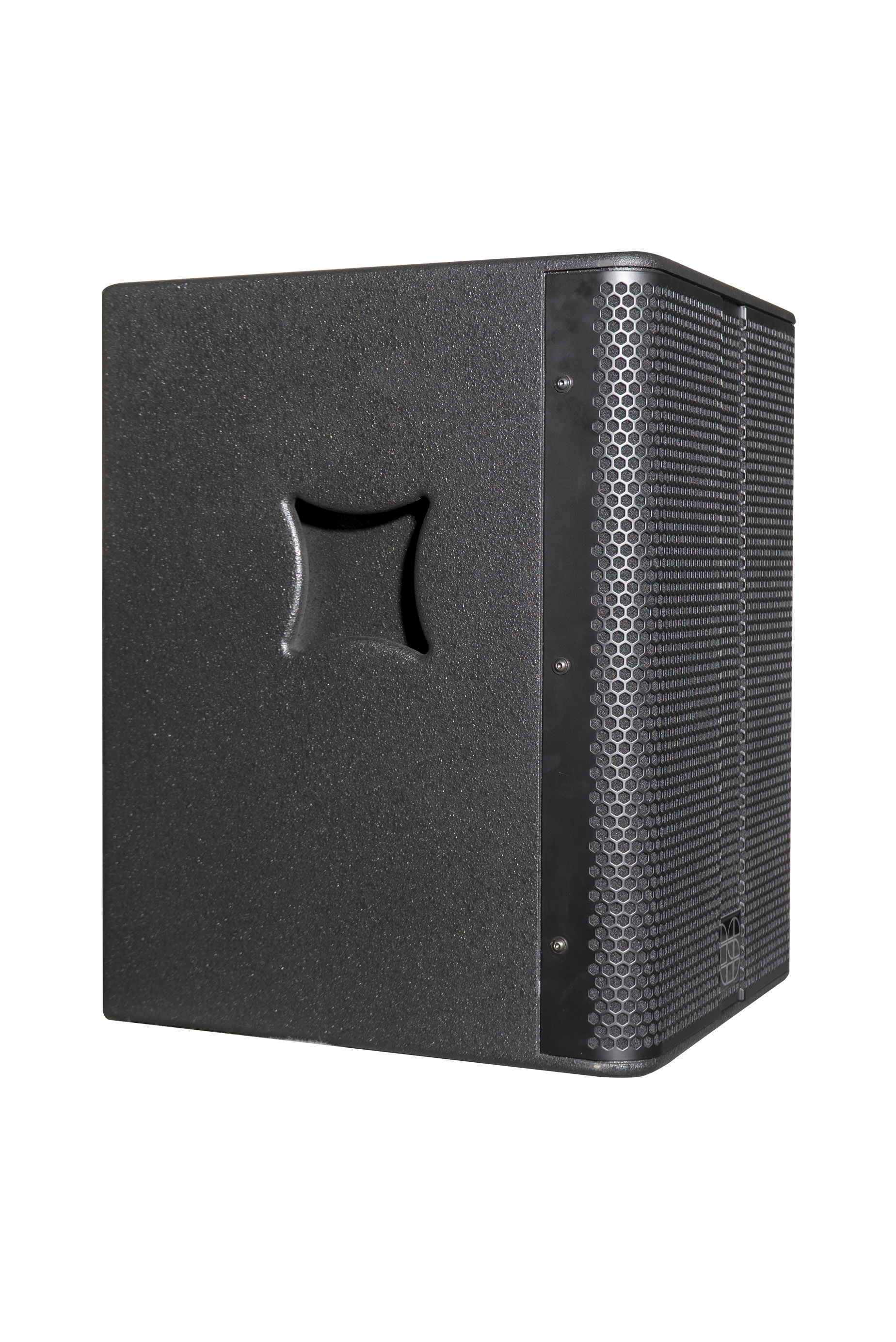

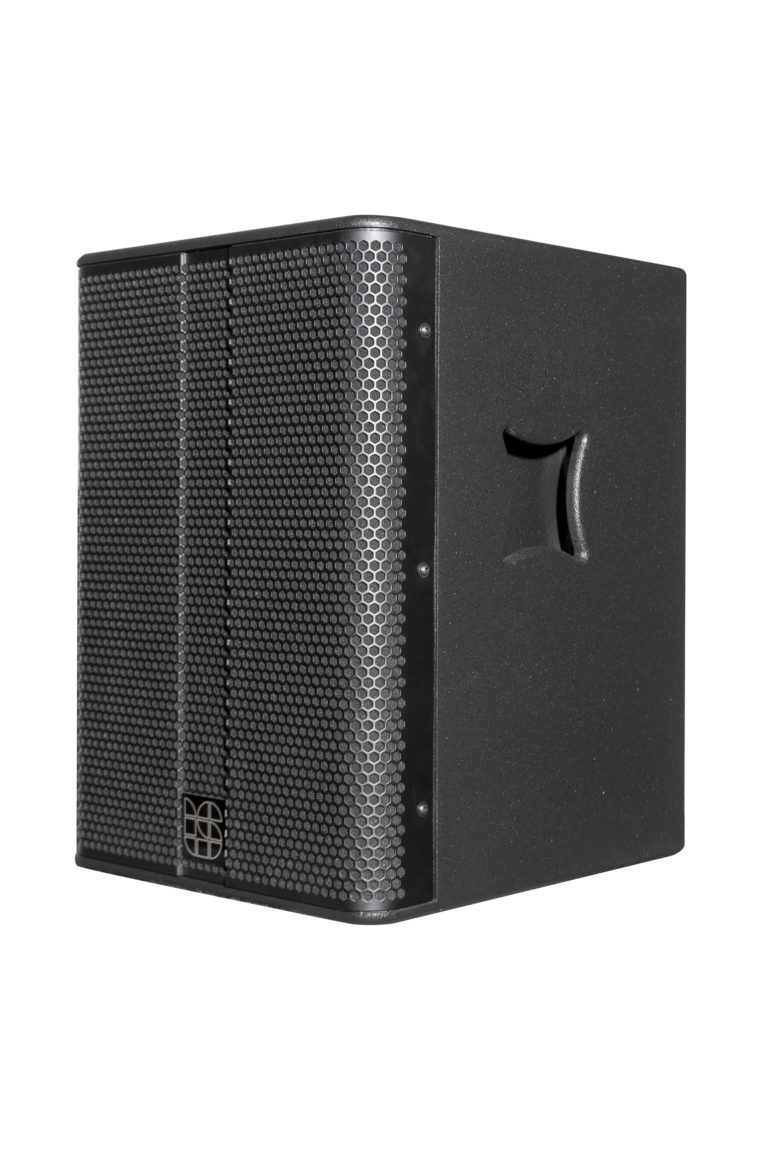

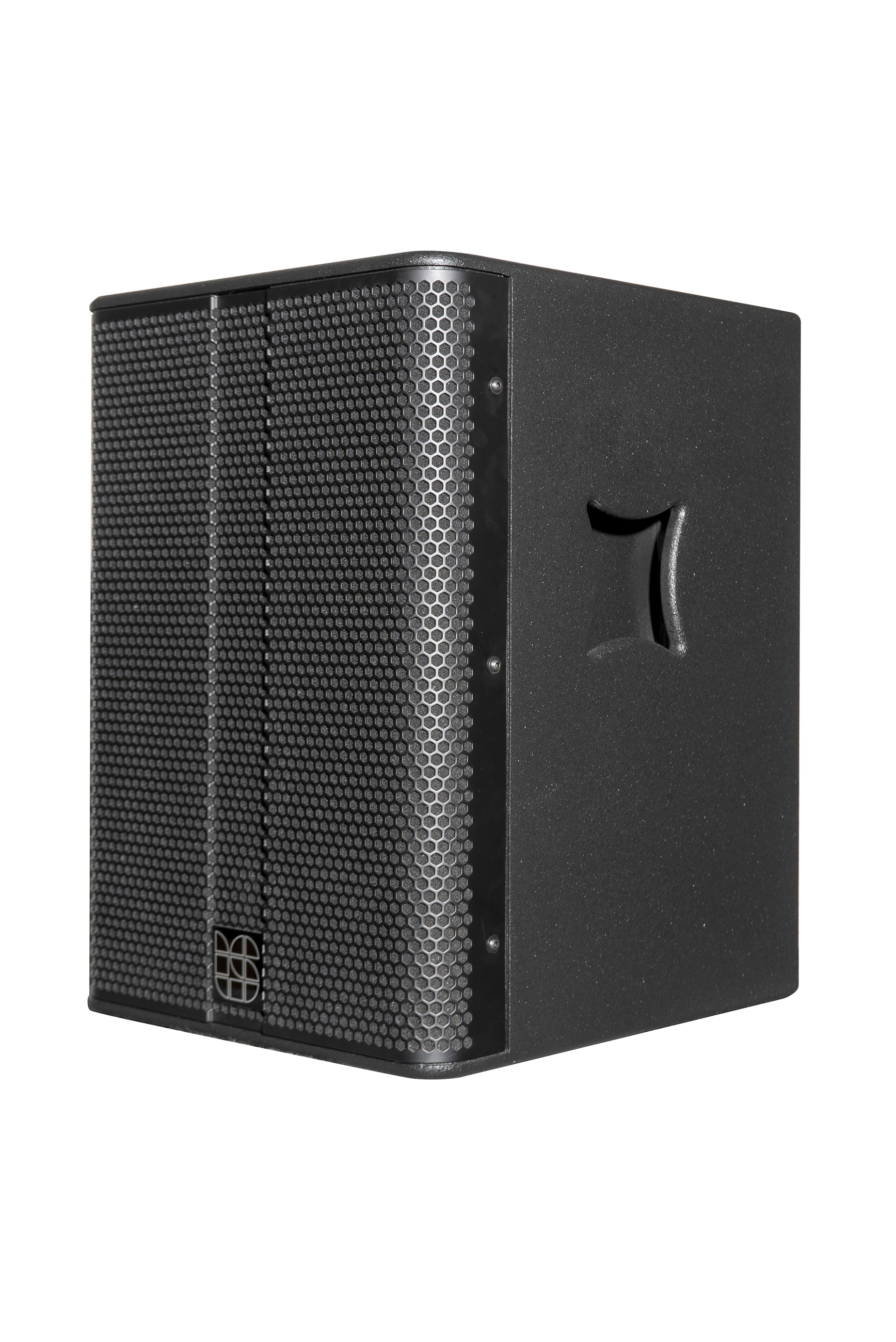

The Logic Systems Notion B15 is a compact, high power, bass enclosure which features a direct radiating 15” bass driver. The Notion B15 was designed to be used as an integrated system with the Notion N10 or N12 enclosure, but also has applications as a compact bin for installation.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 40Hz – 150Hz |
| Components | Bass: 15” cone driver HF: N/A |
| Power Handling | 700w |
| Sensitivity | 96dB |
| Directivity | Omni-directional |
| Impedance | 8 Ohm |
| Construction | 18mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | 2 x Neutrik NL4 connectors 1+/1- Input 2+/2- linked |
| Dimensions | 420mm (W) x 600mm (H) x 475mm (D) |
| Packaged Dimensions | 560mm (W) x 750mm (H) x 560mm(D) |
| Weight | 31 KG |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | Notion B15 |
| Handles | 2 off |
| Tophat | No |
| M20 | Yes |
| Castors | No |
| Bracket Pt. | N/A |
| Inserts / Fly Points: |
N/A |
